Toshiba Transistor Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process) RN4605 Data Manual
Summary
Streamline your circuit design with the RN4605 combined transistor module. This specialized super mini package integrates complementary PNP and NPN transistors and features built-in bias resistors, significantly simplifying interfacing and inverter circuitry. The package minimizes component count and manufacturing steps, making it ideal for designers developing compact switching, driver, and interface circuits in portable or space-constrained electronics. The manual provides complete electrical specifications, maximum ratings, and optimized application guidance.

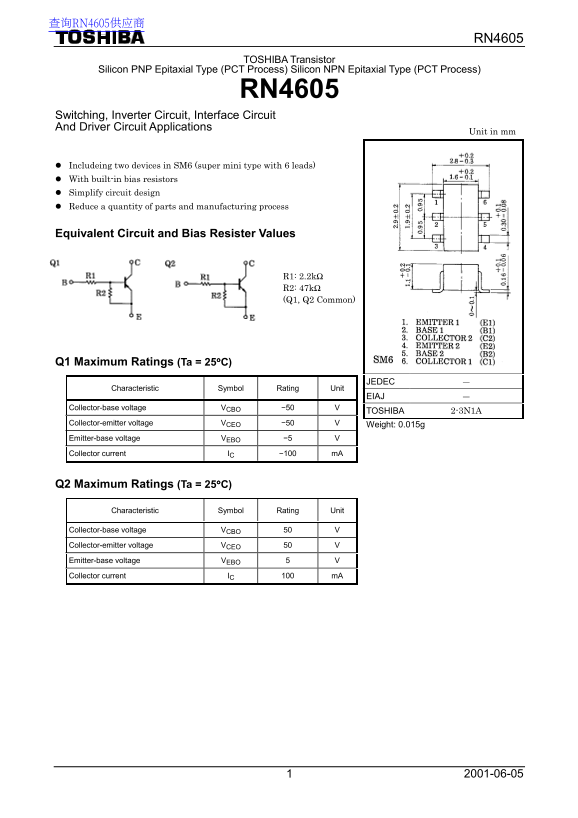

Page 1 Text Content
查询RN4605供应商
RN4605
TOSHIBA Transistor
Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process)
RN4605
Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications
Unit in mm
Includeing two devices in SM6 (super mini type with 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process
Equivalent Circuit and Bias Resister Values
R1: 2.2kΩ R2: 47kΩ (Q1, Q2 Common)
Q1 Maximum Ratings (Ta = 25C)
JEDEC ―
Characteristic Symbol Rating Unit
EIAJ ―
Collector-base voltage VCBO −50 V
TOSHIBA 2-3N1A
Collector-emitter voltage VCEO −50 V Weight: 0.015g Emitter-base voltage VEBO −5 Collector current IC −100 m A
Q2 Maximum Ratings (Ta = 25C)
Characteristic Symbol Rating Unit
Collector-base voltage VCBO 50 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 5 Collector current IC 100 m A
Page Summary Contents For Toshiba Transistor Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process) RN4605 Data Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 5 |
| File Size | 150.14 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the collector power dissipation rating?
The total collector power dissipation ($P_C$) for both devices is 300 mW.
Are bias resistors built into this device?
Yes, it includes built-in bias resistors with values R1: 2.2kΩ and R2: 47kΩ to simplify circuit design.
Can the RN4605 be used in mission-critical systems?
No; it is not warranted for use in equipment requiring extraordinarily high reliability, such as medical or airplane instruments (Unintended Usage).
What is the maximum junction temperature?
The maximum junction temperature ($T_j$) rating is 150 °C.
