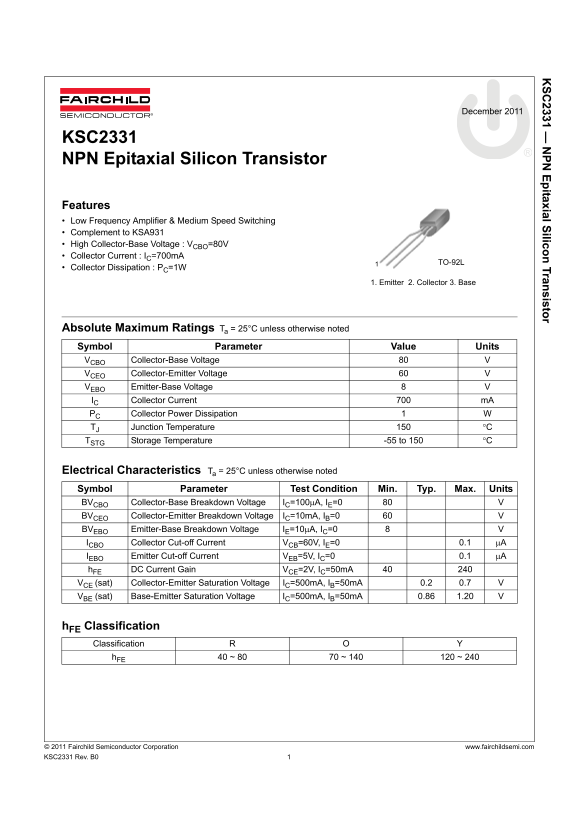

SC 2331 — PN Epitaxial Silicon Transistor
December 2011
KSC2331 NPN Epitaxial Silicon Transistor
Features Low Frequency Amplifier & Medium Speed Switching Complement to KSA931 High Collector-Base Voltage : VCBO=80V Collector Current : IC=700m A
TO-92L1
Collector Dissipation : PC=1W
1. Emitter 2. Collector 3. Base
Absolute Maximum Ratings Ta = 25°C unless otherwise noted Symbol Parameter Value Units VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current m A PC Collector Power Dissipation TJ Junction Temperature °C TSTG Storage Temperature -55 to 150 °C
Electrical Characteristics Ta = 25°C unless otherwise noted Symbol Parameter Test Condition Min. Typ. Max. Units BVCBO Collector-Base Breakdown Voltage IC=100μA, IE=0 BVCEO Collector-Emitter Breakdown Voltage IC=10m A, IB=0 BVEBO Emitter-Base Breakdown Voltage IE=10μA, IC=0 8 ICBO Collector Cut-off Current VCB=60V, IE=0 0.1 μA IEBO Emitter Cut-off Current VEB=5V, IC=0 0.1 μA h FE DC Current Gain VCE=2V, IC=50m A VCE (sat) Collector-Emitter Saturation Voltage IC=500m A, IB=50m A 0.2 0.7 VBE (sat) Base-Emitter Saturation Voltage IC=500m A, IB=50m A 0.86 1.20
h FE Classification Classification R
h FE 40 ~ 80 70 ~ 140 120 ~ 240
