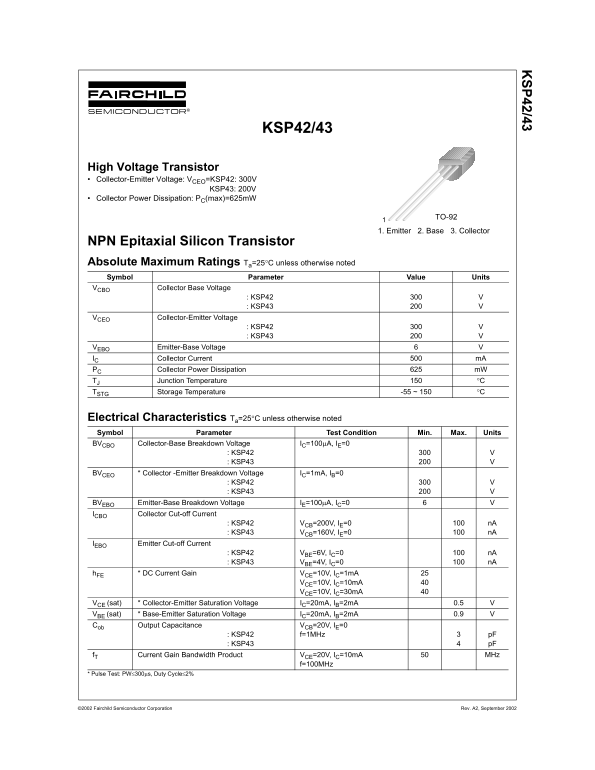

SP42/43
KSP42/43
High Voltage Transistor Collector-Emitter Voltage: VCEO=KSP42: 300V
KSP43: 200V
Collector Power Dissipation: PC(max)=625m W
TO-921
1. Emitter 2. Base 3. Collector
NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol Parameter Value Units VCBO Collector Base Voltage
: KSP42 : KSP43
VCEO Collector-Emitter Voltage
: KSP42 : KSP43
VEBO Emitter-Base Voltage IC Collector Current m A PC Collector Power Dissipation m W TJ Junction Temperature °C TSTG Storage Temperature -55 ~ 150 °C
Electrical Characteristics Ta=25°C unless otherwise noted Symbol Parameter Test Condition Min. Max. Units BVCBO Collector-Base Breakdown Voltage IC=100µA, IE=0
: KSP42 : KSP43
BVCEO * Collector -Emitter Breakdown Voltage IC=1m A, IB=0
: KSP42 : KSP43
BVEBO Emitter-Base Breakdown Voltage IE=100µA, IC=0 ICBO Collector Cut-off Current
: KSP42 VCB=200V, IE=0 n A : KSP43 VCB=160V, IE=0 n A
IEBO Emitter Cut-off Current
: KSP42 VBE=6V, IC=0 n A : KSP43 VBE=4V, IC=0 n A
h FE * DC Current Gain VCE=10V, IC=1m A
VCE=10V, IC=10m A VCE=10V, IC=30m A
VCE (sat) * Collector-Emitter Saturation Voltage IC=20m A, IB=2m A 0.5 VBE (sat) * Base-Emitter Saturation Voltage IC=20m A, IB=2m A 0.9 Cob Output Capacitance VCB=20V, IE=0
: KSP42 f=1MHz p F : KSP43 p F
f T Current Gain Bandwidth Product VCE=20V, IC=10m A MHz
f=100MHz
* Pulse Test: PW≤300µs, Duty Cycle≤2%
©2002 Fairchild Semiconductor Corporation Rev. A2, September 2002
