Dell Toshiba Vostro Transistor Silicon NPN Epitaxial Type (PCT Process) RN1407, RN1408, RN1409 Data Sheet
Summary
Explore this documentation for TOSHIBA NPN Epitaxial Transistors (RN1407, RN1408, RN1409), engineered for reliable switching and interface circuit applications. Featuring built-in bias resistors, these transistors simplify complex designs, reducing component count and manufacturing steps in inverter and driver circuits. This guide provides comprehensive electrical characteristics, maximum ratings, and application details, making it essential for electronics engineers developing general-purpose equipment like industrial robotics or office systems that require high performance and stable circuit integration.

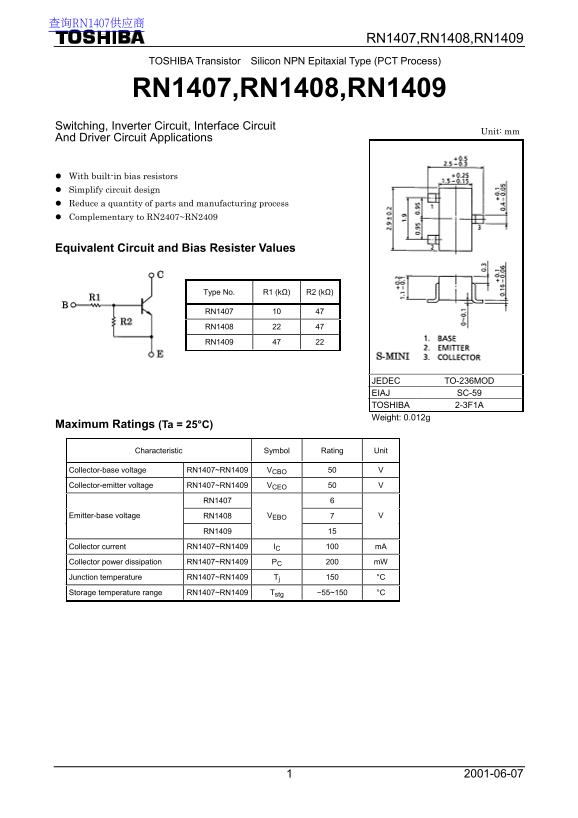

Page 1 Text Content
查询RN1407供应商
RN1407,RN1408,RN1409
TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process)
RN1407,RN1408,RN1409 Switching, Inverter Circuit, Interface Circuit
Unit: mm
And Driver Circuit Applications
With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2407~RN2409
Equivalent Circuit and Bias Resister Values
Type No. R1 (kΩ) R2 (kΩ)
RN1407 10 47 RN1408 22 47 RN1409 47 22
JEDEC TO-236MOD EIAJ SC-59 TOSHIBA 2-3F1A Weight: 0.012g
Maximum Ratings (Ta = 25°C)
Characteristic Symbol Rating Unit
Collector-base voltage RN1407~RN1409 VCBO 50 V Collector-emitter voltage RN1407~RN1409 VCEO 50 V
RN1407 6
RN1408 7 Emitter-base voltage VEBO
RN1409
Collector current RN1407~RN1409 IC 100 m A Collector power dissipation RN1407~RN1409 PC 200 m W Junction temperature RN1407~RN1409 Tj 150 °C Storage temperature range RN1407~RN1409 Tstg −55~150 °C
Page Summary Contents For Dell Toshiba Vostro Transistor Silicon NPN Epitaxial Type (PCT Process) RN1407, RN1408, RN1409 Data Sheet
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 7 |
| File Size | 169.98 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What equipment is prohibited for use with these transistors?
The product is not warranted for 'Unintended Usage,' such as medical instruments, airplane instruments, or atomic energy control systems.
How does using this transistor simplify circuit design?
It features built-in bias resistors, which helps reduce the quantity of parts and simplifies the manufacturing process.
What is the maximum operating junction temperature?
The maximum rated Junction temperature (Tj) for all models is 150 °C.
