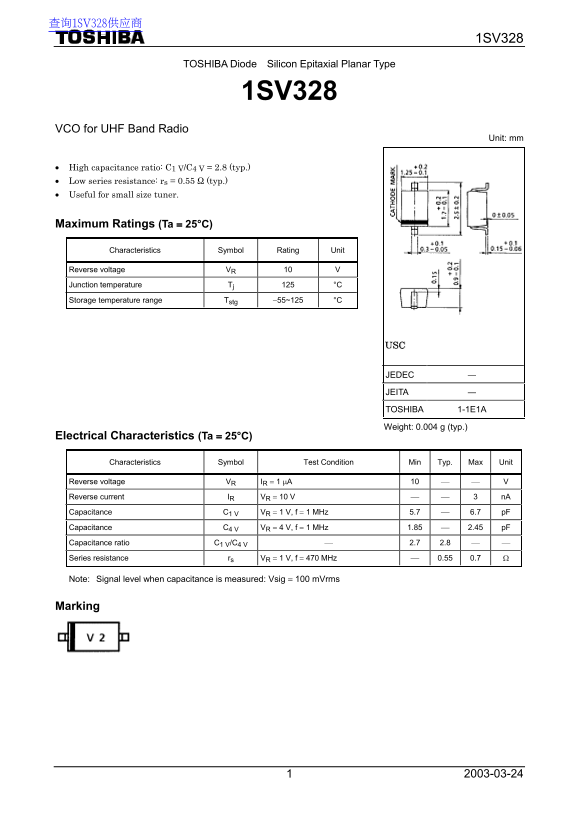

1SV328
TOSHIBA Diode Silicon Epitaxial Planar Type
1SV328
VCO for UHF Band Radio
Unit: mm
High capacitance ratio: C1 V/C4 V = 2.8 (typ.) Low series resistance: rs = 0.55 Ω (typ.) Useful for small size tuner.
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Reverse voltage VR 10 V Junction temperature Tj 125 °C Storage temperature range Tstg 55~125 °C
JEDEC ― JEITA ― TOSHIBA 1-1E1A
Weight: 0.004 g (typ.)
Electrical Characteristics (Ta 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Reverse voltage VR IR 1 A 10 V Reverse current IR VR 10 V 3 n A Capacitance C1 V VR 1 V, f 1 MHz 5.7 6.7 p F Capacitance C4 V VR 4 V, f 1 MHz 1.85 2.45 p F Capacitance ratio C1 V/C4 V 2.7 2.8 Series resistance rs VR 1 V, f 470 MHz 0.55 0.7
Note: Signal level when capacitance is measured: Vsig 100 m Vrms
Marking
