Toshiba Diode Silicon Epitaxial Planar Type 1SV329 Data Sheet

Summary

This detailed datasheet describes the high-performance 1SV329 diode, engineered for use as a Voltage Controlled Oscillator (VCO) in UHF Band Radio applications. The manual provides comprehensive electrical characteristics, including accurate capacitance measurements and low series resistance data, along with maximum operational ratings. This guide is essential for electronics designers and engineers developing general purpose equipment, such as consumer devices, industrial robotics, or measuring instruments, ensuring components are integrated safely and effectively within specified operating parameters.

📄 Preview PAGE OF 4

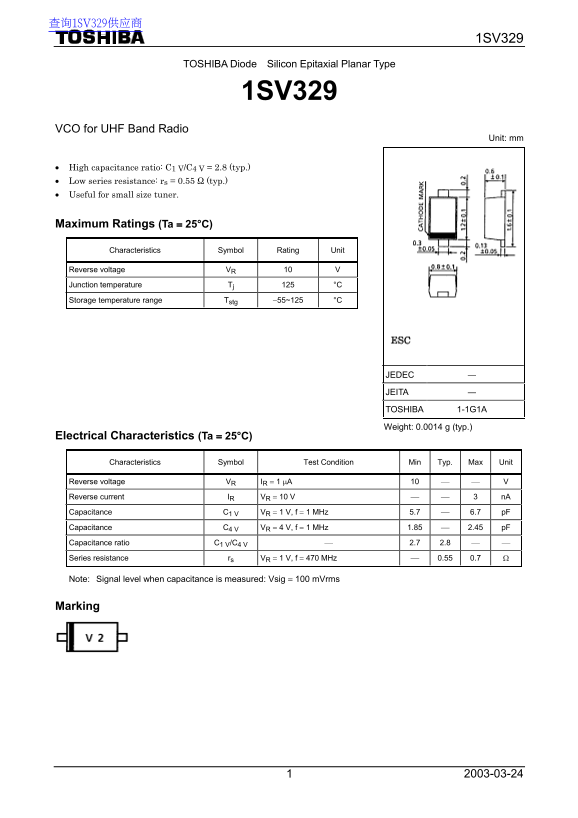

Page 1 Text Content

查询1SV329供应商

1SV329

TOSHIBA Diode Silicon Epitaxial Planar Type

1SV329

VCO for UHF Band Radio

Unit: mm

High capacitance ratio: C1 V/C4 V = 2.8 (typ.) Low series resistance: rs = 0.55 Ω (typ.) Useful for small size tuner.

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Reverse voltage VR 10 V Junction temperature Tj 125 °C Storage temperature range Tstg 55~125 °C

JEDEC ― JEITA ― TOSHIBA 1-1G1A

Weight: 0.0014 g (typ.)

Electrical Characteristics (Ta  25°C)

Characteristics Symbol Test Condition Min Typ. Max Unit

Reverse voltage VR IR  1 A 10   V Reverse current IR VR  10 V   3 n A Capacitance C1 V VR  1 V, f  1 MHz 5.7  6.7 p F Capacitance C4 V VR  4 V, f  1 MHz 1.85  2.45 p F Capacitance ratio C1 V/C4 V  2.7 2.8 Series resistance rs VR  1 V, f  470 MHz  0.55 0.7

Note: Signal level when capacitance is measured: Vsig  100 m Vrms

Marking
