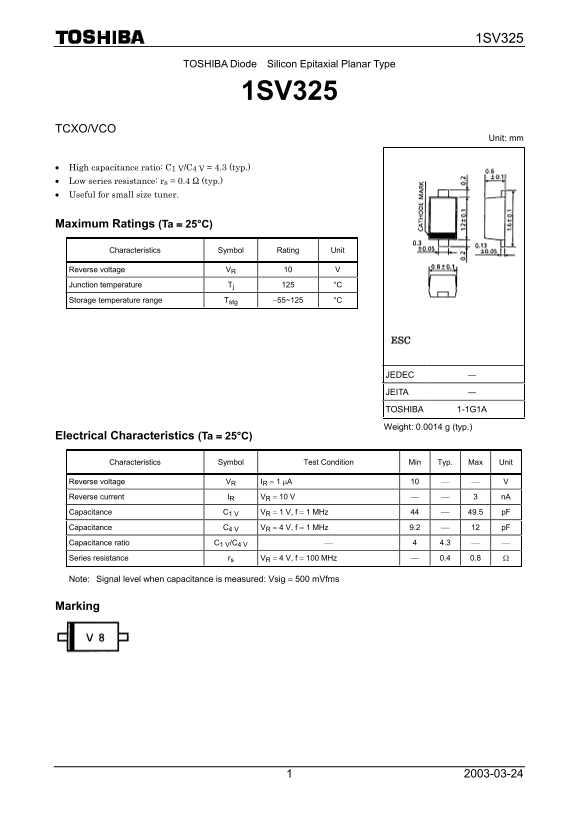

1SV325
TOSHIBA Diode Silicon Epitaxial Planar Type
1SV325
TCXO/VCO
Unit: mm
High capacitance ratio: C1 V/C4 V = 4.3 (typ.) Low series resistance: rs = 0.4 Ω (typ.) Useful for small size tuner.
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Reverse voltage VR 10 V Junction temperature Tj 125 °C Storage temperature range Tstg 55~125 °C
JEDEC ― JEITA ― TOSHIBA 1-1G1A
Weight: 0.0014 g (typ.)
Electrical Characteristics (Ta 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Reverse voltage VR IR 1 A 10 V Reverse current IR VR 10 V 3 n A Capacitance C1 V VR 1 V, f 1 MHz 44 49.5 p F Capacitance C4 V VR 4 V, f 1 MHz 9.2 12 p F Capacitance ratio C1 V/C4 V 4 4.3 Series resistance rs VR 4 V, f 100 MHz 0.4 0.8
Note: Signal level when capacitance is measured: Vsig 500 m Vfms
