Toshiba TOSHIBA Field Effect Transistor Silicon N Channel MOS Type SSM3K15FU Data Sheet

Summary

This low on-resistance N-Channel MOSFET is designed for high-speed switching and analog applications in compact packages. The accompanying documentation provides comprehensive technical specifications, including detailed electrical characteristics, maximum ratings, and performance curves across varying operating temperatures. This manual is essential for hardware designers and electronics engineers seeking to implement reliable, efficient power components into demanding circuit designs.

📄 Preview PAGE OF 6

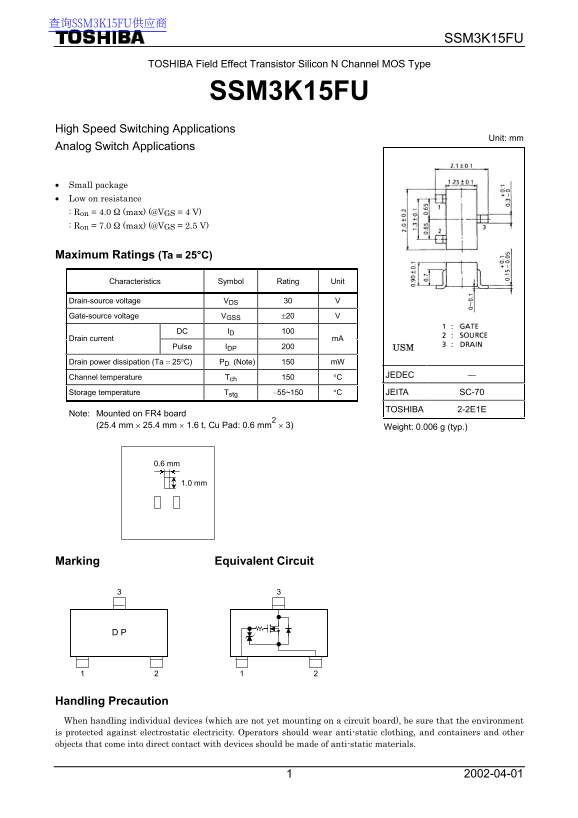

Page 1 Text Content

查询SSM3K15FU供应商

SSM3K15FU

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type

SSM3K15FU

High Speed Switching Applications

Unit: mm

Analog Switch Applications

Small package Low on resistance : Ron = 4.0 Ω (max) (@VGS = 4 V) : Ron = 7.0 Ω (max) (@VGS = 2.5 V)

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Drain-source voltage VDS 30 V Gate-source voltage VGSS 20 V

DC ID 100

Drain current m A

Pulse IDP 200

Drain power dissipation (Ta  25C) PD (Note) 150 m W

JEDEC ―

Channel temperature Tch 150 C Storage temperature Tstg 55~150 C JEITA SC-70

TOSHIBA 2-2E1E

Note: Mounted on FR4 board (25.4 mm  25.4 mm  1.6 t, Cu Pad: 0.6 mm2  3) Weight: 0.006 g (typ.)

0.6 mm

1.0 mm

Marking Equivalent Circuit

Handling Precaution When handling individual devices (which are not yet mounting on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials.

Page Summary Contents For Toshiba TOSHIBA Field Effect Transistor Silicon N Channel MOS Type SSM3K15FU Data Sheet

Page 1 查询SSM3K15FU供应商 SSM3K15FU TOSHIBA Field Effect Transistor Silicon N Channel MOS Type SSM3K15FU High Speed Switching Applications Unit: mm Analog Switch Applications Small package Low on resistance : Ro...
Page 2 SSM3K15FU Electrical Characteristics (Ta  25°C) Characteristics Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VGS  16 V, VDS  0   1 A Drain-source breakdown voltage V (BR) ...
Page 3 SSM3K15FU ra in -S ou rc on re si st an ce ra in -S ou rc on re si st an ce (O (O ra in ur re nt (m A) ID – VDS ID – VGS Common Source Common Source Ta  25°C VDS  3 V 2.7 Ta  100°C VGS  2.1 V Drai...
Page 4 SSM3K15FU Fo rw ar tra ns fe r a dm itt an ce ap ac ita nc (p F) Sw itc hi ng ti (n s) (m S) Yfs – ID IDR – VDS Common Source Common Source VDS  3 V VGS  0 V Ta  25°C Ta  25°C Drain current ID (m ...
Page 5 SSM3K15FU 000707EAARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or ...
Page 6 This datasheet has been download from: www.datasheetcatalog.com Datasheets for electronics components.

Manual Details

Brand Toshiba
Pages 6
File Size 250.19 KB
Published June 05, 2026
22 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What precautions must be taken when handling the individual devices?

Operators should wear anti-static clothing, and containers or objects that come into direct contact with the device must be made of anti-static materials.

What are the key maximum electrical ratings for this component?

The maximum drain-source voltage (V_D) is 30 V, and the gate-source voltage (GSS) limit is +/- 20 V.

Under what conditions should I be aware of usage limitations?

This product is not intended or warranted for use in applications requiring extraordinarily high quality or reliability, such as medical instruments or aircraft systems.

What is the typical drain power dissipation at standard temperature?

The rated maximum drain power dissipation (P_D) at an ambient temperature of 25°C is 150 mW.
