SSM3J02T

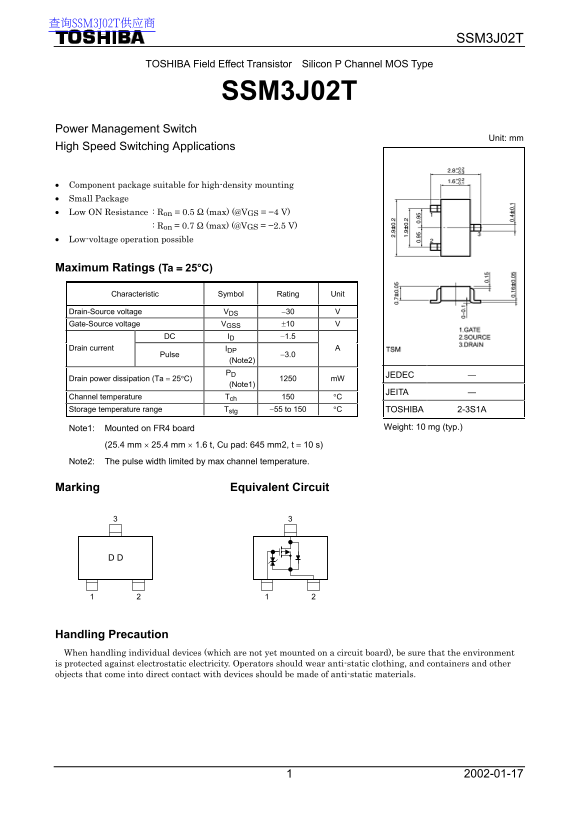

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type

SSM3J02T

Power Management Switch

Unit: mm

High Speed Switching Applications

Component package suitable for high-density mounting Small Package Low ON Resistance : Ron = 0.5 Ω (max) (@VGS = −4 V) : Ron = 0.7 Ω (max) (@VGS = −2.5 V) Low-voltage operation possible

Maximum Ratings (Ta  25°C)

Characteristic Symbol Rating Unit

Drain-Source voltage VDS 30 V Gate-Source voltage VGSS 10 V

DC ID 1.5

Drain current IDP

Pulse 3.0

(Note2) PD

JEDEC ―

Drain power dissipation (Ta  25C) 1250 m W

(Note1)

JEITA ―

Channel temperature Tch 150 C Storage temperature range Tstg 55 to 150 C TOSHIBA 2-3S1A

Note1: Mounted on FR4 board Weight: 10 mg (typ.)

(25.4 mm  25.4 mm  1.6 t, Cu pad: 645 mm2, t  10 s) Note2: The pulse width limited by max channel temperature.

Marking Equivalent Circuit

Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials.

Page Summary Contents For Toshiba TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM3J02T Data Handbook

Page 1 查询SSM3J02T供应商 SSM3J02T TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM3J02T Power Management Switch Unit: mm High Speed Switching Applications Component package suitable for high-densit...
Page 2 SSM3J02T Electrical Characteristics (Ta  25°C) Characteristic Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VGS  10 V, VDS  0   1 A Drain-Source breakdown voltage V (BR) DS...
Page 3 SSM3J02T Fo rw ar tra ns fe r a dm itt an ce ra in -S ou rc on re si st an ce |Y fs S) (O ra in ur re nt (A ID – VDS ID – VGS Common Source Common Source Ta  25°C VDS  3 V Ta  100°C VGS  1.4 V D...
Page 4 SSM3J02T ra in ur re nt (A Sw itc hi ng ti (n s) t – ID PD – Ta Common Source VDD  15 V Mounted on FR4 board Tr an si en t t he rm al im pe da nc th (° /W t  10 s VGS  0 to 2.5 V 1.25 (25.4 mm  ...
Page 5 SSM3J02T 000707EAARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or f...
