Toshiba TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSII) SSM3J14T Data Handbook

Summary

The SSM3J14T is a compact P-Channel MOSFET Power Management Switch designed for high-density, efficient electronic applications. This technical manual provides comprehensive specifications, including detailed electrical characteristics (e.g., $R_{DS(ON)}$, gate thresholds), maximum ratings, and essential handling precautions against electrostatic discharge (ESD). It guides engineers in designing circuits ranging from computer equipment to industrial appliances by detailing performance parameters and operational guidelines, ensuring reliable integration into general electronics systems.

📄 Preview PAGE OF 6

Page 1 Text Content

查询SSM3J14T供应商

SSM3J14T

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSII)

SSM3J14T

Power Management Switch

Unit: mm

DC-DC Converters

Suitable for high-density mounting due to compact package Low on Resistance : Ron = 145 mΩ (max) (@VGS = −4.5 V) : Ron = 85 mΩ (max) (@VGS = −10 V) High-speed switching

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Drain-Source voltage VDS 30 V Gate-Source voltage VGSS 20 V

DC ID 2.7

Drain current IDP

Pulse 5.4

(Note 2) PD t  10 s 1.25

Drain power dissipation

JEDEC ―

(Note 1) 0.7

Channel temperature Tch 150 C JEITA ― Storage temperature range Tstg 55 to 150 C

TOSHIBA 2-3S1A

Note 1: Mounted on FR4 board Weight: 10 mg (typ.)

(25.4 mm  25.4 mm  1.6 t, Cu pad: 645 mm2)

Note 2: The pulse width limited by maximum channel temperature.

Marking Equivalent Circuit

Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials. The Channel-to-Ambient thermal resistance Rth (ch-a) and the drain power dissipation PD vary according to the board material, board area, board thickness and pad area, and are also affected by the environment in which the product is used. When using this device, please take heat dissipation fully into account

Page Summary Contents For Toshiba TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSII) SSM3J14T Data Handbook

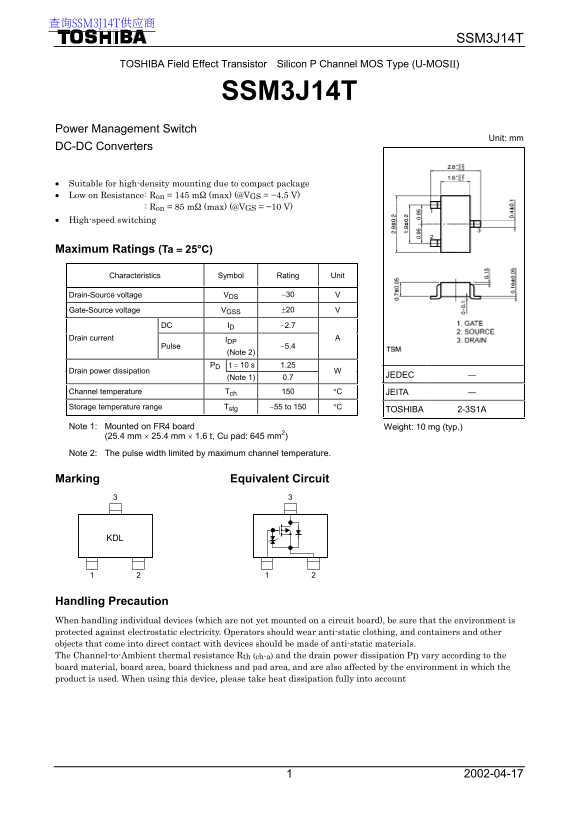

Page 1 查询SSM3J14T供应商 SSM3J14T TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOSII) SSM3J14T Power Management Switch Unit: mm DC-DC Converters Suitable for high-density mounting due to compact...
Page 2 SSM3J14T Electrical Characteristics (Ta  25°C) Characteristic Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VGS  16 V, VDS  0   1 A V (BR) DSS ID  1 m A, VGS  0 30   ...
Page 3 SSM3J14T ra in -S ou rc on re si st an ce ra in -S ou rc on re si st an ce (O (O ra in ur re nt (A ID – VDS ID – VGS 3.5 V 4 V 5 V 10 V Common source VDS  5 V Common source Ta  25°C Ta  25°C VG...
Page 4 SSM3J14T at e- so ur ce ol ta ge V) Sw itc hi ng ti (n s) at th re sh ol vo lta ge th (V Vth – Ta C – VDS Common source Common source 1.6 VDS  5 V VGS  0 ID  0.1 m A f  1 MHz Ta  25°C 1.0 Ciss ...
Page 5 SSM3J14T ra in ur re nt (A rth – tw Single pulse Tr an si en t t he rm al im pe da nc Mounted on FR4 board th (° /W (25.4 mm  25.4 mm  1.6 t, Cu Pad: 645 mm2) Pulse width tw (s) Safe operating area ...
Page 6 SSM3J14T 000707EAARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or f...
