SSM3K01T

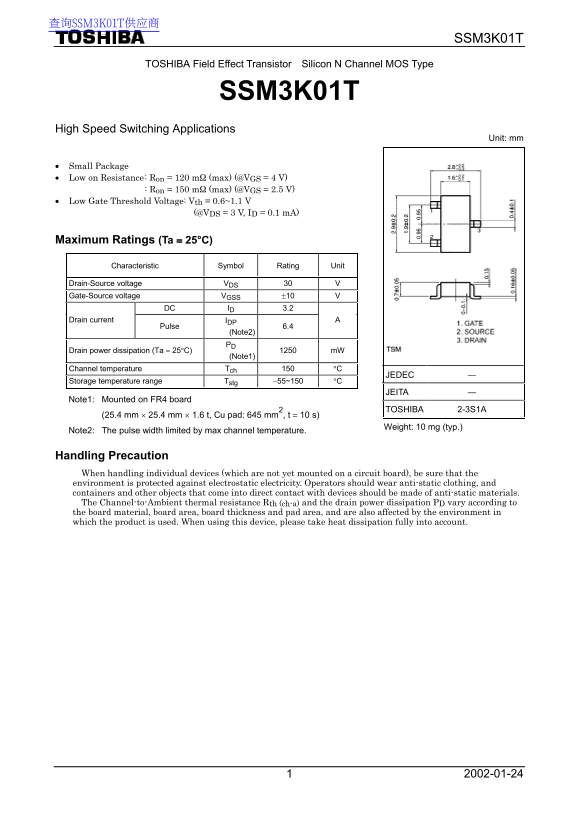

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type

SSM3K01T

High Speed Switching Applications

Unit: mm

Small Package Low on Resistance : Ron = 120 mΩ (max) (@VGS = 4 V) : Ron = 150 mΩ (max) (@VGS = 2.5 V) Low Gate Threshold Voltage: Vth = 0.6~1.1 V (@VDS = 3 V, ID = 0.1 m A)

Maximum Ratings (Ta  25°C)

Characteristic Symbol Rating Unit

Drain-Source voltage VDS 30 V Gate-Source voltage VGSS 10 V

DC ID 3.2

Drain current IDP

Pulse 6.4

(Note2) PD

Drain power dissipation (Ta  25C) 1250 m W

(Note1)

Channel temperature Tch 150 C

JEDEC ―

Storage temperature range Tstg 55~150 C

JEITA ―

Note1: Mounted on FR4 board

TOSHIBA 2-3S1A

(25.4 mm  25.4 mm  1.6 t, Cu pad: 645 mm2, t  10 s)

Weight: 10 mg (typ.)

Note2: The pulse width limited by max channel temperature.

Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials. The Channel-to-Ambient thermal resistance Rth (ch-a) and the drain power dissipation PD vary according to the board material, board area, board thickness and pad area, and are also affected by the environment in which the product is used. When using this device, please take heat dissipation fully into account.
