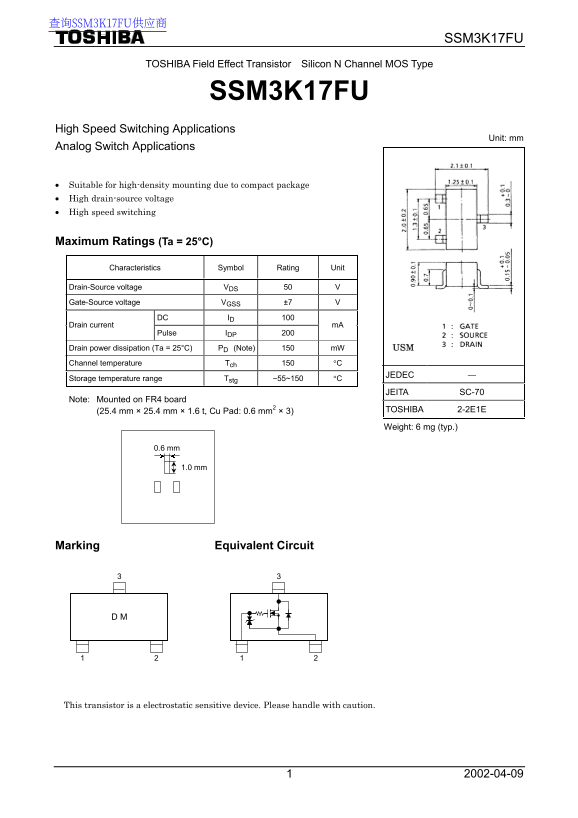

Page 1 Text Content

查询SSM3K17FU供应商

SSM3K17FU

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type

SSM3K17FU

High Speed Switching Applications

Unit: mm

Analog Switch Applications

Suitable for high-density mounting due to compact package High drain-source voltage High speed switching

Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit

Drain-Source voltage VDS 50 V Gate-Source voltage VGSS ±7 V

DC ID 100

Drain current m A

Pulse IDP 200

Drain power dissipation (Ta = 25°C) PD (Note) 150 m W Channel temperature Tch 150 C

JEDEC ―

Storage temperature range Tstg −55~150 C

JEITA SC-70

Note: Mounted on FR4 board

(25.4 mm × 25.4 mm × 1.6 t, Cu Pad: 0.6 mm2 × 3) TOSHIBA 2-2E1E

Weight: 6 mg (typ.)

0.6 mm

1.0 mm

Marking Equivalent Circuit

This transistor is a electrostatic sensitive device. Please handle with caution.
