Toshiba Field Effect Transistor Silicon N Channel MOS Type SSM3K05FU Data Sheet

Summary

This datasheet summarizes the Toshiba SSM3K05FU, a high-performance N Channel MOSFET ideal for fast switching applications. Featuring low on-resistance and housed in a compact SC-70 package, this transistor ensures reliable operation in demanding electronic designs. The manual provides comprehensive technical guidance, detailing key electrical characteristics, maximum ratings, handling precautions, and usage guidelines necessary for engineers building general consumer and industrial electronics circuits.

📄 Preview PAGE OF 5

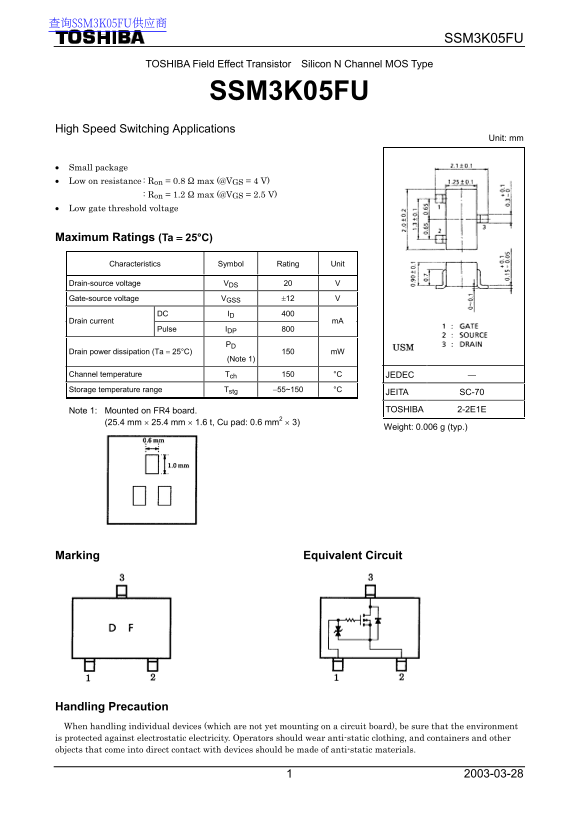

Page 1 Text Content

查询SSM3K05FU供应商

SSM3K05FU

TOSHIBA Field Effect Transistor Silicon N Channel MOS Type

SSM3K05FU

High Speed Switching Applications

Unit: mm

Small package Low on resistance : Ron = 0.8 Ω max (@VGS = 4 V) : Ron = 1.2 Ω max (@VGS = 2.5 V) Low gate threshold voltage

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Drain-source voltage VDS 20 V Gate-source voltage VGSS 12 V

DC ID 400

Drain current m A

Pulse IDP 800

Drain power dissipation (Ta  25°C) 150 m W

(Note 1)

Channel temperature Tch 150 °C JEDEC ― Storage temperature range Tstg 55~150 °C

JEITA SC-70 Note 1: Mounted on FR4 board. TOSHIBA 2-2E1E

(25.4 mm  25.4 mm  1.6 t, Cu pad: 0.6 mm2  3)

Weight: 0.006 g (typ.)

Marking Equivalent Circuit

Handling Precaution When handling individual devices (which are not yet mounting on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials.
