Toshiba TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM3J02F Data Manual

Summary

The SSM3J02F is a high-speed P-Channel MOSFET power management switch designed for efficient operation in various high-speed switching applications. This manual provides comprehensive documentation, including detailed electrical characteristics, maximum ratings, rigorous physical dimensions, and essential handling precautions. It is intended for design engineers and electronics professionals who require reliable components for general electronic equipment, such as computers, industrial robotics, and domestic appliances, ensuring performance within specified operating ranges.

📄 Preview PAGE OF 5

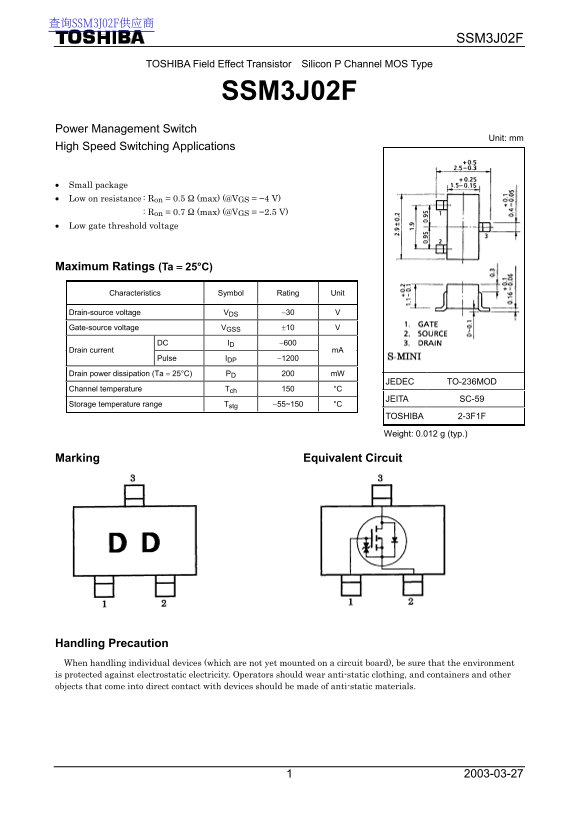

Page 1 Text Content

查询SSM3J02F供应商

SSM3J02F

TOSHIBA Field Effect Transistor Silicon P Channel MOS Type

SSM3J02F

Power Management Switch

Unit: mm

High Speed Switching Applications

Small package Low on resistance : Ron = 0.5 Ω (max) (@VGS = −4 V) : Ron = 0.7 Ω (max) (@VGS = −2.5 V) Low gate threshold voltage

Maximum Ratings (Ta  25°C)

Characteristics Symbol Rating Unit

Drain-source voltage VDS 30 V Gate-source voltage VGSS 10 V

DC ID 600

Drain current m A

Pulse IDP 1200

Drain power dissipation (Ta  25°C) PD 200 m W

JEDEC TO-236MOD

Channel temperature Tch 150 °C

JEITA SC-59

Storage temperature range Tstg 55~150 °C

TOSHIBA 2-3F1F

Weight: 0.012 g (typ.)

Marking Equivalent Circuit

Handling Precaution When handling individual devices (which are not yet mounted on a circuit board), be sure that the environment is protected against electrostatic electricity. Operators should wear anti-static clothing, and containers and other objects that come into direct contact with devices should be made of anti-static materials.

Page Summary Contents For Toshiba TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM3J02F Data Manual

Page 1 查询SSM3J02F供应商 SSM3J02F TOSHIBA Field Effect Transistor Silicon P Channel MOS Type SSM3J02F Power Management Switch Unit: mm High Speed Switching Applications Small package Low on resistance : Ron = 0....
Page 2 SSM3J02F Electrical Characteristics (Ta  25°C) Characteristics Symbol Test Condition Min Typ. Max Unit Gate leakage current IGSS VGS  10 V, VDS  0   1 A Drain-source breakdown voltage V (BR) D...
Page 3 SSM3J02F
Page 4 SSM3J02F Figure 1 25.4 mm  25.4 mm  1.6 t (a Cu pad of 0.8 mm2 area)
Page 5 SSM3J02F 000707EAARESTRICTIONS ON PRODUCT USE TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor devices in general can malfunction or f...

Manual Details

Brand Toshiba
Pages 5
File Size 152.56 KB
Published June 02, 2026
28 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What precautions must be taken when handling this device?

The environment must be protected against electrostatic electricity. Operators should wear anti-static clothing, and contact materials must also be anti-static.

What voltage is required for the transistor to reliably turn on?

A recommended operating gate-source voltage (Gs) of 2.5 V or higher is needed.

What are the maximum drain current and power dissipation ratings?

The Drain current (Id) is rated at 600 mA, and the Drain power dissipation (Pd) is 200 mW.

Can this device be used in life support or critical medical equipment?

No; it is not warranted for usage in instruments requiring extraordinary reliability, such as safety devices or medical instruments.
