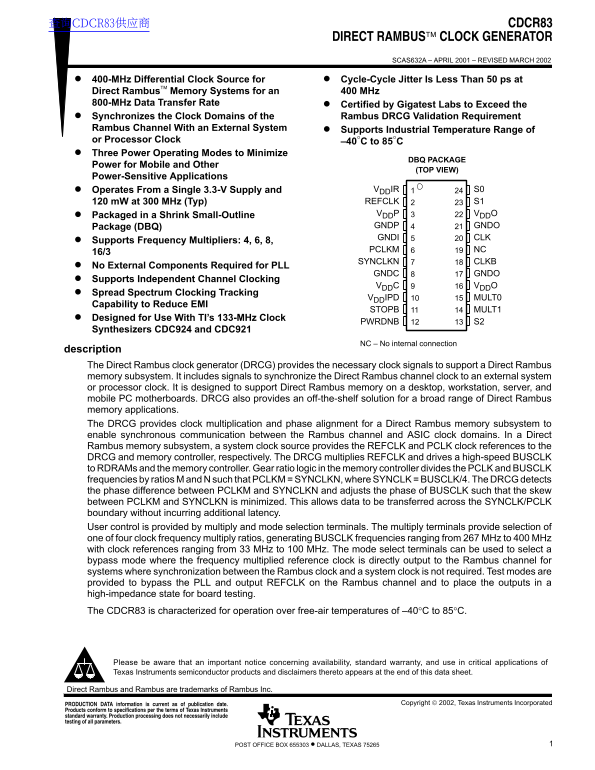

Texas Instruments CDCR83 Direct Rambus Clock Generator Data Sheet

查询CDCR83供应商 CDCR83

DIRECT RAMBUS CLOCK GENERATOR

SCAS632A – APRIL 2001 – REVISED MARCH 2002

400-MHz Differential Clock Source for Cycle-Cycle Jitter Is Less Than 50 ps at Direct Rambus Memory Systems for an MHz 800-MHz Data Transfer Rate Certified by Gigatest Labs to Exceed the

Synchronizes the Clock Domains of the Rambus DRCG Validation Requirement

Rambus Channel With an External System Supports Industrial Temperature Range of or Processor Clock –40°C to 85°C Three Power Operating Modes to Minimize

DBQ PACKAGE

Power for Mobile and Other

(TOP VIEW)

Power-Sensitive Applications

Operates From a Single 3.3-V Supply and VDDIR S0 120 m W at 300 MHz (Typ) REFCLK S1 Packaged in a Shrink Small-Outline VDDP VDDO

Package (DBQ) GNDP GNDO GNDI CLK

Supports Frequency Multipliers: 4, 6, 8,

PCLKM NC

SYNCLKN CLKB

No External Components Required for PLL

GNDC GNDO

Supports Independent Channel Clocking

VDDC VDDO

Spread Spectrum Clocking Tracking

VDDIPD MULT0

Capability to Reduce EMI

STOPB MULT1

Designed for Use With TI’s 133-MHz Clock

PWRDNB S2

Synthesizers CDC924 and CDC921

NC – No internal connection

description The Direct Rambus clock generator (DRCG) provides the necessary clock signals to support a Direct Rambus memory subsystem. It includes signals to synchronize the Direct Rambus channel clock to an external system or processor clock. It is designed to support Direct Rambus memory on a desktop, workstation, server, and mobile PC motherboards. DRCG also provides an off-the-shelf solution for a broad range of Direct Rambus memory applications. The DRCG provides clock multiplication and phase alignment for a Direct Rambus memory subsystem to enable synchronous communication between the Rambus channel and ASIC clock domains. In a Direct Rambus memory subsystem, a system clock source provides the REFCLK and PCLK clock references to the DRCG and memory controller, respectively. The DRCG multiplies REFCLK and drives a high-speed BUSCLK to RDRAMs and the memory controller. Gear ratio logic in the memory controller divides the PCLK and BUSCLK frequencies by ratios M and N such that PCLKM = SYNCLKN, where SYNCLK = BUSCLK/4. The DRCG detects the phase difference between PCLKM and SYNCLKN and adjusts the phase of BUSCLK such that the skew between PCLKM and SYNCLKN is minimized. This allows data to be transferred across the SYNCLK/PCLK boundary without incurring additional latency. User control is provided by multiply and mode selection terminals. The multiply terminals provide selection of one of four clock frequency multiply ratios, generating BUSCLK frequencies ranging from 267 MHz to 400 MHz with clock references ranging from 33 MHz to 100 MHz. The mode select terminals can be used to select a bypass mode where the frequency multiplied reference clock is directly output to the Rambus channel for systems where synchronization between the Rambus clock and a system clock is not required. Test modes are provided to bypass the PLL and output REFCLK on the Rambus channel and to place the outputs in a high-impedance state for board testing. The CDCR83 is characterized for operation over free-air temperatures of –40°C to 85°C.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Direct Rambus and Rambus are trademarks of Rambus Inc.

Copyright  2002, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
