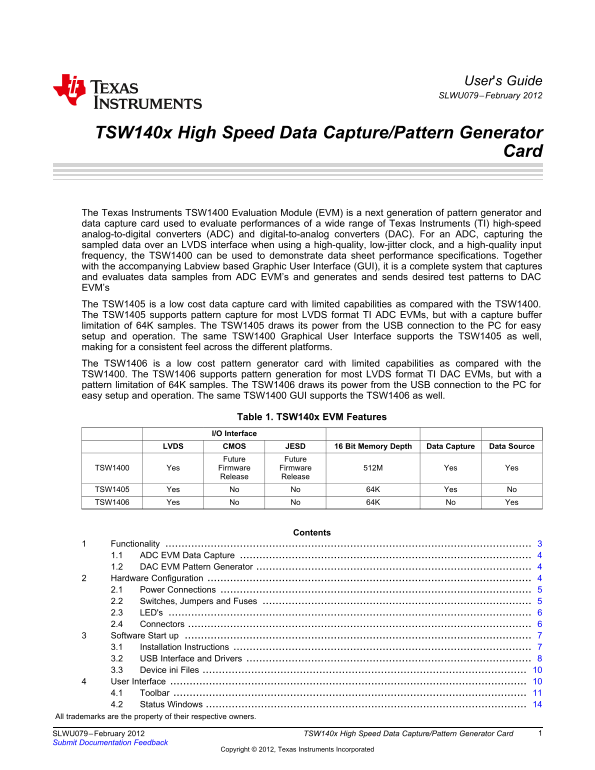

Texas Instruments TSW1400 High-Speed Data Capture Pattern Generator Card User's Manual and Specifications
Summary
This comprehensive system is essential for evaluating high-speed performance of Texas Instruments Analog-to-Digital Converters (ADCs) and Digital-to-Analog Converters (DACs). Comprising data capture cards (TSW140x series) and accompanying LabVIEW GUI, it allows users to accurately demonstrate datasheet specifications by capturing sampled data or generating precise test patterns. This documentation serves as a complete guide for engineers, covering hardware configuration, software setup, ADC data capture operations, and DAC pattern generator usage.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 34 |
| File Size | 2.05 MB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary purpose of the TSW140x card?
It's a pattern generator and data capture card used to evaluate TI's high-speed ADC and DAC performances.
Does the TSW1405 have limitations compared to the TSW1400?
Yes, it has limited capabilities, specifically limiting data capture to 64K samples.
How does the power connection work for the supporting cards?
Both TSW1405 and TSW1406 draw their power from the USB connection to the PC.
What software is required to operate the system?
A Labview based Graphic User Interface (GUI) is needed, which supports all models in this series.
