The CDC582 is a high-performance, low-skew phase-locked loop (PLL) clock driver designed for precise timing distribution in demanding electronics. Accepting differential LVPECL inputs, this device synchronizes and distributes stable, low-jitter clock signals across up to twelve TTL-compatible outputs at 3.3V. It is ideally suited for signal applications like Synchronous DRAMs that require stable frequency matching, offering configurable output frequencies (half or double) while minimizing external components. The manual details its PLL operation, synchronization mechanics, and advanced output control features.

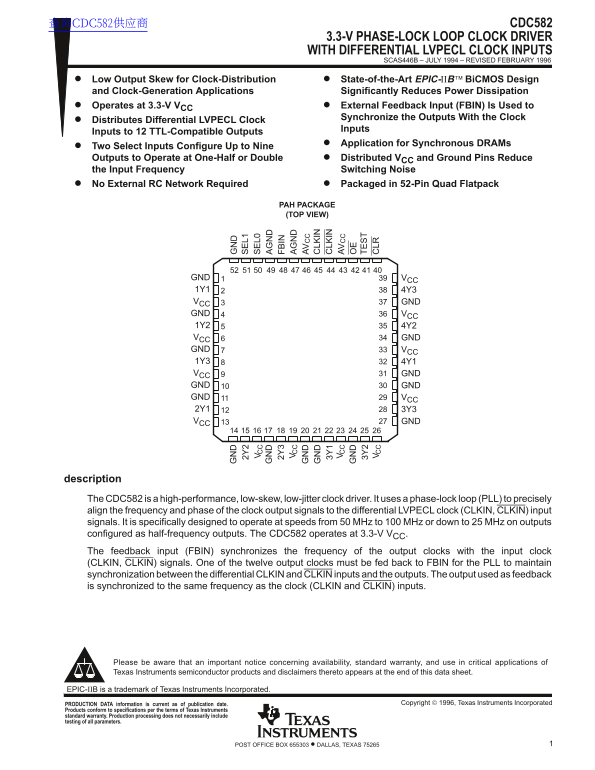

Page 1 Text Content
查询CDC582供应商 CDC582
3.3-V PHASE-LOCK LOOP CLOCK DRIVER WITH DIFFERENTIAL LVPECL CLOCK INPUTS
SCAS446B – JULY 1994 – REVISED FEBRUARY 1996
Low Output Skew for Clock-Distribution State-of-the-Art EPIC-ΙΙB Bi CMOS Design and Clock-Generation Applications Significantly Reduces Power Dissipation Operates at 3.3-V VCC External Feedback Input (FBIN) Is Used to
Synchronize the Outputs With the Clock
Distributes Differential LVPECL Clock
Inputs
Inputs to 12 TTL-Compatible Outputs
Application for Synchronous DRAMs
Two Select Inputs Configure Up to Nine Outputs to Operate at One-Half or Double Distributed VCC and Ground Pins Reduce the Input Frequency Switching Noise No External RC Network Required Packaged in 52-Pin Quad Flatpack
PAH PACKAGE (TOP VIEW)
GND VCC
2Y IN
1Y1 4Y3 VCC GND GND VCC
LK IN
3Y LK IN
VCC GND GND VCC 1Y3 4Y1
VCC GND
GND GND GND VCC 2Y1 3Y3 VCC GND
description The CDC582 is a high-performance, low-skew, low-jitter clock driver. It uses a phase-lock loop (PLL) to precisely align the frequency and phase of the clock output signals to the differential LVPECL clock (CLKIN, CLKIN) input signals. It is specifically designed to operate at speeds from 50 MHz to 100 MHz or down to 25 MHz on outputs configured as half-frequency outputs. The CDC582 operates at 3.3-V VCC. The feedback input (FBIN) synchronizes the frequency of the output clocks with the input clock (CLKIN, CLKIN) signals. One of the twelve output clocks must be fed back to FBIN for the PLL to maintain synchronization between the differential CLKIN and CLKIN inputs and the outputs. The output used as feedback is synchronized to the same frequency as the clock (CLKIN and CLKIN) inputs.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
EPIC-ΙΙB is a trademark of Texas Instruments Incorporated.
Copyright 1996, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Page Summary Contents For Texas Instruments CDC582 3.3-V Phase-Locked Loop Clock Driver with Differential LVPECL Clock Inputs
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 10 |
| File Size | 128.12 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What voltage does the CDC582 operate on?
The device operates at a regulated 3.3-V voltage.
How is clock synchronization achieved?
Feedback (FBIN) synchronizes the output clocks to the input differential LVPECL signals by requiring one output to be wired back to FBIN for the PLL.
Does the CDC582 require any external components?
No, the loop filter for the PLL is included on-chip, and no external RC networks are required.
What must I do before using the device after power up or setting changes?
The CDC582 requires a specific stabilization time following power up and modifications to the CLKIN/CLKIN signals (SEL1/SEL0 change) to achieve phase lock.
