Phoenix Contact QC 1,5 6-Position Order No. 1718009 Product Data Sheet & Manual
Summary
Reliable plug component designed for robust electrical connections in demanding industrial environments. This product, rated for 12A and 500V, features a precision 5mm pitch suitable for panel wiring systems. The associated documentation provides comprehensive technical specifications, including detailed dimensionality, cross-section compatibility, UL/CUL certifications, and compliance details necessary for professional system design. Ideal for equipment manufacturers, industrial electricians, and automation engineers requiring durable, compliant connectivity solutions from Phoenix Contact.
Page 1 Text Content
Extract from the online catalog

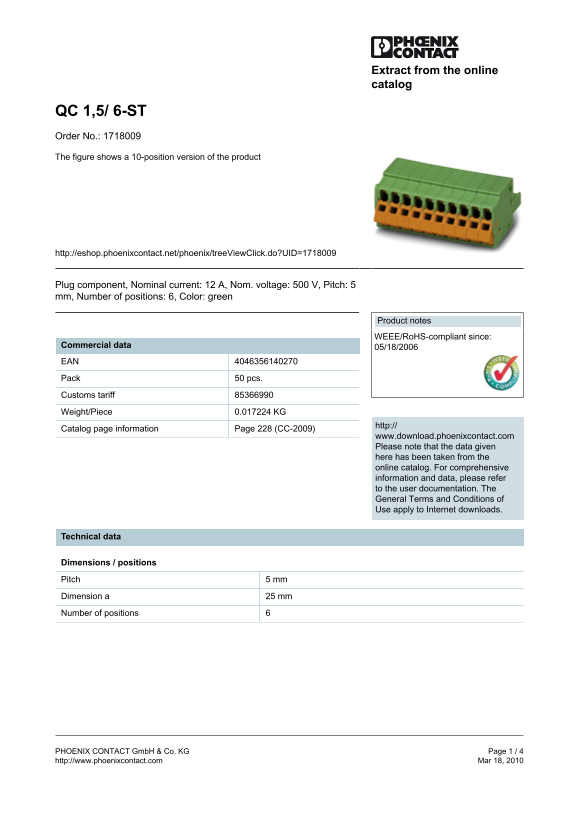

QC 1,5/ 6-ST Order No.: 1718009 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1718009
Plug component, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 5 mm, Number of positions: 6, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 05/18/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.017224 KG
http://
Catalog page information Page 228 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 25 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
