Phoenix Contact PT 1,5 6- PVH-3,5 Data Sheet Manual Order No. 1984057
Summary
Discover our industrial-grade 6-position terminal block, featuring robust screw connections and a nominal current of 8 A. This modular component is essential for reliable electrical wiring and circuit design. The included documentation provides comprehensive technical specifications, including dimensions, various conductor compatibility data, and accessory guides (such as marker cards). It is designed for professional engineers, electricians, and automation technicians building durable, compliant control panels and harnessing systems.

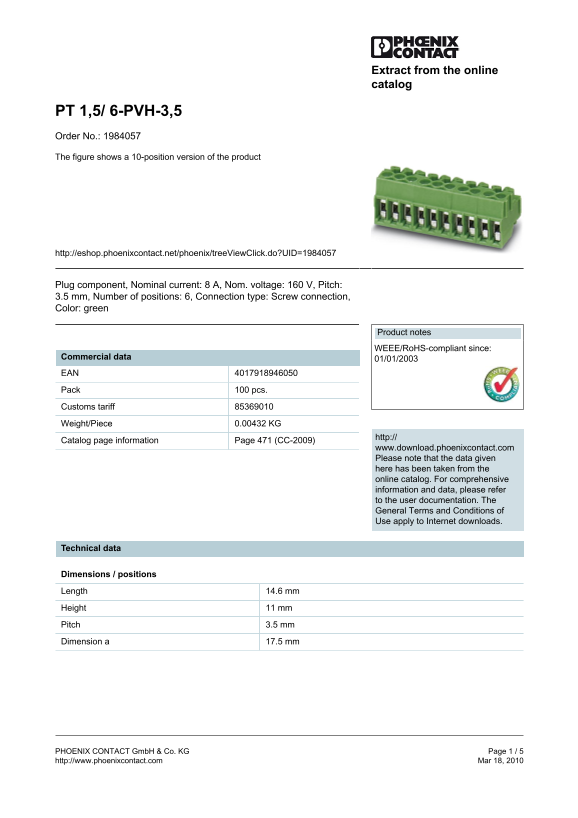

Page 1 Text Content
Extract from the online catalog
PT 1,5/ 6-PVH-3,5 Order No.: 1984057 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1984057
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.00432 KG
http://
Catalog page information Page 471 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.6 mm Height 11 mm Pitch 3.5 mm Dimension a 17.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PT 1,5 6- PVH-3,5 Data Sheet Manual Order No. 1984057
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 117.91 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum acceptable conductor cross section for solid wires?
The compatible range is a solid min. 0.2 mm² and max. 1.5 mm².
What torque should be used when tightening the connections?
The recommended tightening torque ranges from a minimum of 0.22 Nm to a maximum of 0.25 Nm.
What is the rated voltage for Category III/2 applications?
The specified rated voltage (III/2) is 400 V.
What tool is recommended to work with this terminal block?
A specialized screwdriver, identified as Item 1205037, matches all screw terminal blocks up to a 1.5 mm² connection cross section.
