Phoenix Contact MC 1,5 6-STF-3,5 Order No. 1847097 Product Data Handbook/Instructions
Summary
This professional terminal block component is designed for secure electrical connections, featuring 6 positions, screw connections, and handling up to 8A at 160V. The accompanying documentation provides comprehensive technical specifications, detailed wiring guidelines, mounting dimensions, and compliance data (UL, CSA, VDE). It is essential reading for electrical engineers, installers, and industrial automation professionals ensuring safe and compliant system integration using high-quality electronic components.
Page 1 Text Content
Extract from the online catalog

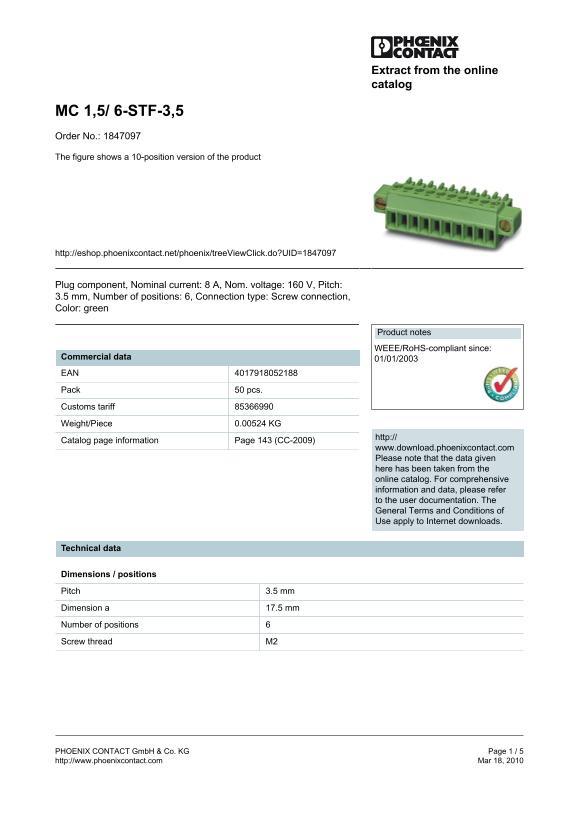

MC 1,5/ 6-STF-3,5 Order No.: 1847097 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1847097
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00524 KG
http://
Catalog page information Page 143 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 17.5 mm Number of positions Screw thread M2
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
