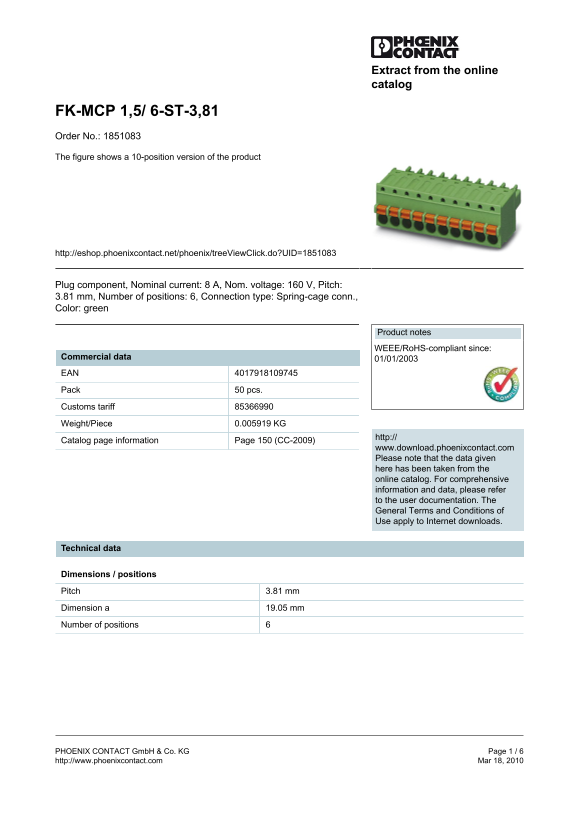

Page 1 Text Content
Extract from the online catalog
FK-MCP 1,5/ 6-ST-3,81 Order No.: 1851083 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1851083
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 6, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.005919 KG
http://
Catalog page information Page 150 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 19.05 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FK-MCP 1,5 6-ST-3,81 Order No. 1851083 - Data Handbook / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 144.53 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal operating voltage and current capacity?
The product has a nominal voltage of 160 V and an 8 A nominal current.
What conductor wire sizes are compatible with this block?
It accepts solid or stranded conductors between a minimum of 0.14 mm² and a maximum of 1.5 mm².
Is the product certified for major electrical safety standards?
Yes, it is certified by several bodies including CB, CSA, CUL, GOST, UL, and VDE-PZI.
What specialized tools are available for marking terminal strips?
Labeling accessories include marker pens (1051993) and various self-adhesive printed marker cards.
