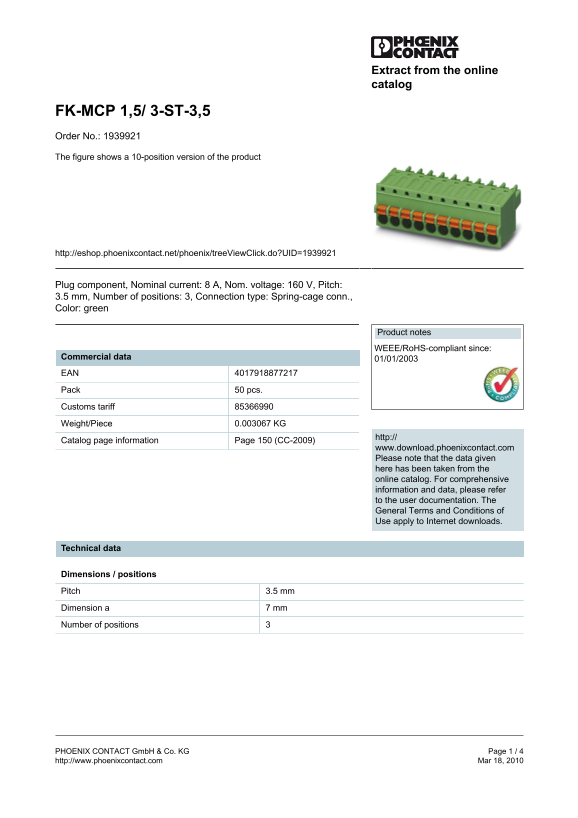

Page 1 Text Content
Extract from the online catalog
FK-MCP 1,5/ 3-ST-3,5 Order No.: 1939921 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1939921
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 3, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003067 KG
http://
Catalog page information Page 150 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 7 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FK-MCP 1,5 3-ST-3,5 Data Sheet User Guide
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 137.57 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum load current for this component?
The maximum load current is 8 A when using a 1.5 mm conductor cross section.
Is the product compliant with various international safety standards?
Yes, it holds certifications including CB, CUL, GOST, UL, and VDE-PZI.
What conductor sizes are supported for stranded wiring?
Stranded conductors can range from a minimum of 0.14 mm² up to a maximum of 1.5 mm².
How is the component labeled or marked afterwards?
It can be labeled using specific accessories like marker cards (e.g., 0804073) or manually with a pen for unprinted strips.
