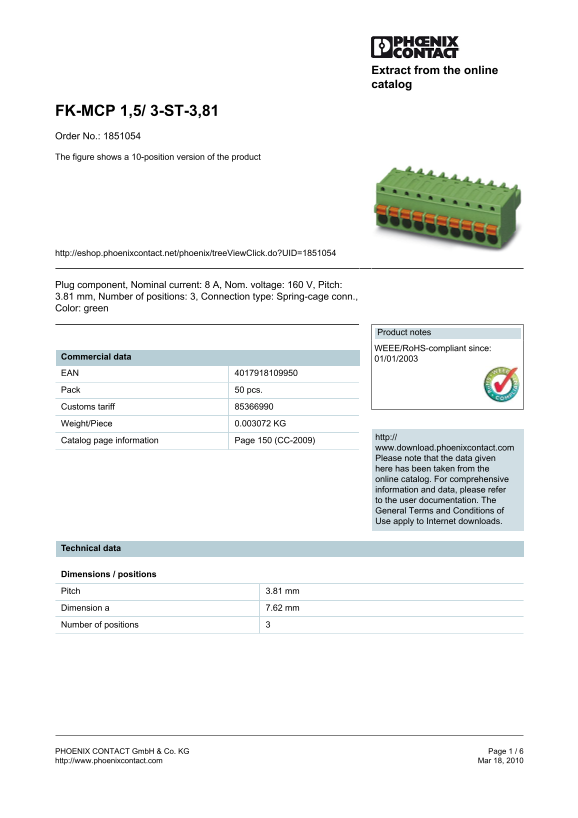

Page 1 Text Content
Extract from the online catalog
FK-MCP 1,5/ 3-ST-3,81 Order No.: 1851054 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1851054
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 3, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003072 KG
http://
Catalog page information Page 150 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 7.62 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FK- MCP 1.5 3-ST-3.81 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 144.26 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum nominal current rating for this component?
The Nominal current (I) is 8 A.
What conductor cross sections can be accommodated by the block?
Solid conductors range from a minimum of 0.14 mm² up to a maximum of 1.5 mm².
Is this product compliant with major environmental standards?
Yes, it is WEEE/RoHS-compliant.
What different connection styles are offered for installation?
Connections are available via spring-cage, screw, press-in, and soldering methods.
