Phoenix Contact -FK- MCP 1.5 10-STF-3.81 Data Sheet / Manual
Summary
This robust 10-position terminal block is designed for reliable electrical connections in demanding industrial control and automation applications. Rated for up to 8A at 160V, it features a durable spring-cage connection system ideal for clean installations. The accompanying manual provides comprehensive technical specifications, including mating accessories, mounting options, detailed compliance standards (such as UL/CSA), and critical electrical data, making it an essential resource for professional engineers and electricians building secure circuit assemblies.

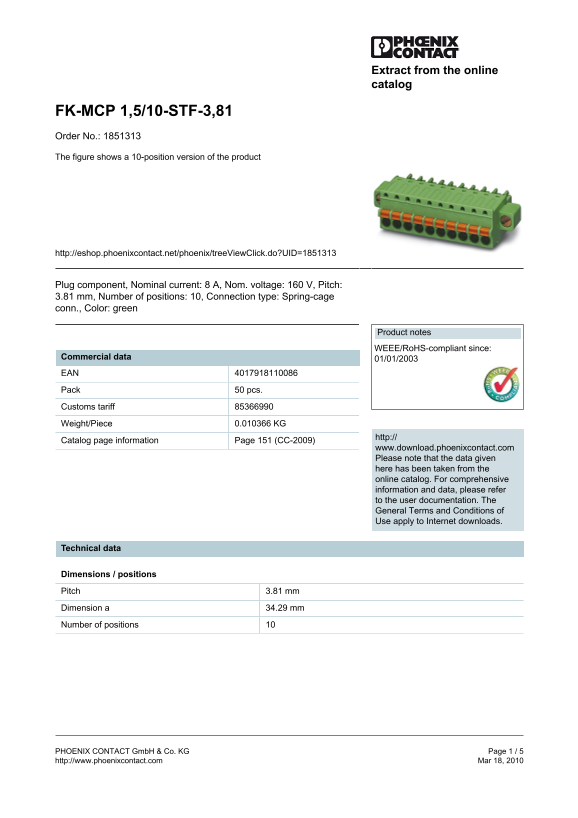

Page 1 Text Content
Extract from the online catalog
FK-MCP 1,5/10-STF-3,81 Order No.: 1851313 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1851313
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.010366 KG
http://
Catalog page information Page 151 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 34.29 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact -FK- MCP 1.5 10-STF-3.81 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 137.96 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and voltage rating?
The device has a nominal current (I) of 8 A and a nominal voltage (U) of 160 V.
What are the structural dimensions?
The pitch is 3.81 mm, with a dimension 'a' measuring 34.29 mm for 10 positions.
What conductor cross sections are supported?
Solid conductors can range from min. 0.14 mm² to max. 1.5 mm². Stranded conductors can also use this range, depending on ferrule usage.
Does the product meet safety standards?
Yes, it is certified with CB, CSA, CUL, GOST, UL, and VDE-PZI approvals.
What type of connection is available?
Various connections are available, including Spring-cage (FK-MCP), Screw, Soldering, Direct mounting, or Press-in.
