This reliable 10-position terminal block is ideal for secure electrical connections in industrial settings. Rated up to 8A at a nominal voltage of 160V, it features a robust screw connection and precise 3.81 mm pitch for dependable performance. The accompanying manual provides comprehensive technical specifications, including dimensional data, electrical ratings, conductor compatibility, and details on necessary accessories, making it essential for engineers and automation technicians designing high-quality circuit assemblies.

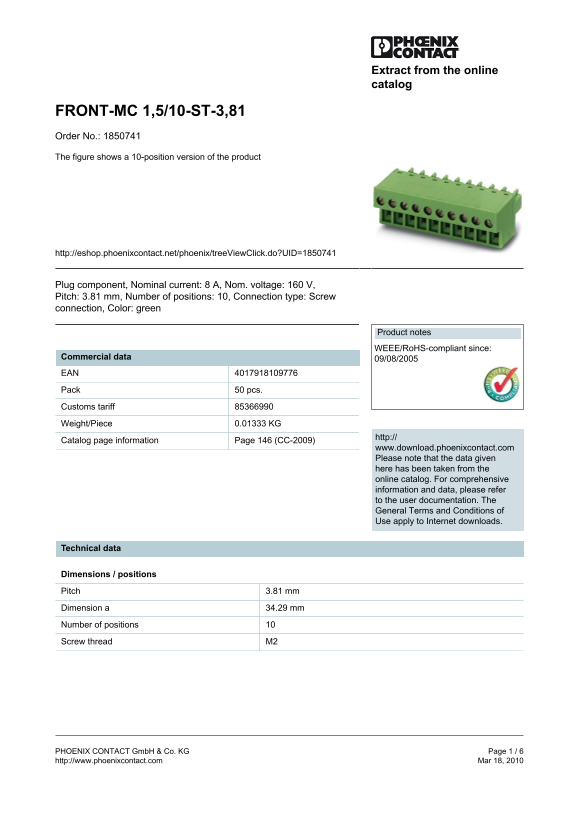

Page 1 Text Content
Extract from the online catalog
FRONT-MC 1,5/10-ST-3,81 Order No.: 1850741 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1850741
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01333 KG
http://
Catalog page information Page 146 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 34.29 mm Number of positions Screw thread M2
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FRONT-MC 1.5 10-ST-3.81 Data Sheet User Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 151.54 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical ratings of the terminal block?
The component has a nominal current of 8 A and a nominal voltage of 160 V.
How many positions does this specific model accommodate?
The front-mounted plug component is rated for 10 positions.
What conductor cross sections can connect to this terminal block?
Solid conductors must be between a minimum of 0.14 mm² and a maximum of 1.5 mm².
How does the manufacturer ensure proper labeling?
Labeling can be done using specialized marker cards or manually with dedicated pen tools.
