Phoenix Contact MC 1.5 10-ST-3.5 General data
Summary
This specialized terminal block is engineered for reliable, high-density electrical interconnection in industrial control and automation systems. The manual provides a comprehensive technical guide covering operational specifications, detailed wiring parameters (including conductor cross-section ranges), and installation procedures. It also details required accessories such as marker cards and tools. This documentation is essential for qualified electrical engineers and system technicians responsible for ensuring safe, accurate, and compliant integration of professional electronic equipment.

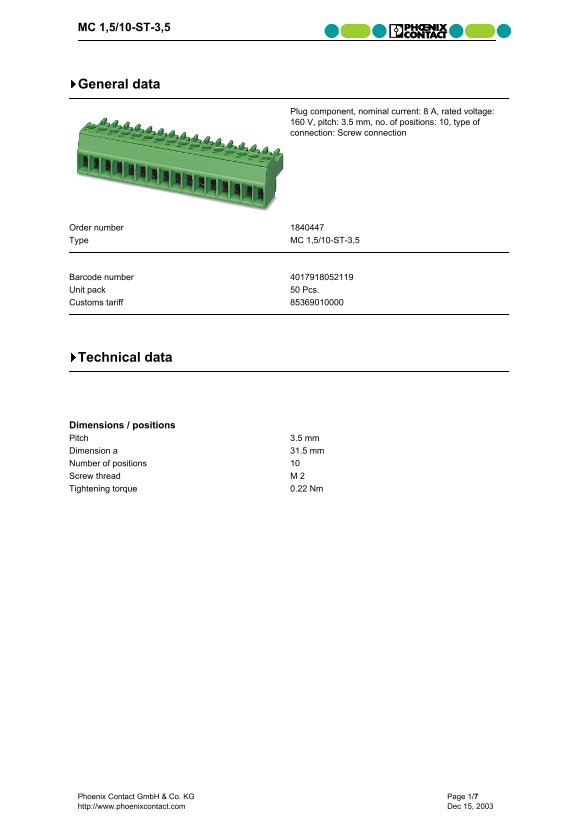

Page 1 Text Content
MC 1,5/10-ST-3,5
General data
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 10, type of connection: Screw connection
Order number Type MC 1,5/10-ST-3,5
Barcode number Unit pack 50 Pcs. Customs tariff
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 31.5 mm Number of positions 10 Screw thread M 2 Tightening torque 0.22 Nm
Phoenix Contact Gmb H & Co. KG Page 1/7 http://www.phoenixcontact.com Dec 15, 2003
Page Summary Contents For Phoenix Contact MC 1.5 10-ST-3.5 General data
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 91.64 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the rated voltage and nominal current for this terminal block?
The nominal voltage (U) is 160 V N, and the nominal current (I) is 8 A N.
Does it accommodate various conductor types?
Yes, conductor cross sections range from solid rigid min. 0.14 mm² up to max. 1.5 mm².
What tools are recommended for installation?
A bladed screwdriver (Item Designation: 1205037 SZS 0,4X2,5) matches all screw terminal blocks needed for connection.
How do I ensure accurate wiring identification?
You can use marker cards (Item Designation: 0804073 SK) which are self-adhesive and printed horizontally in 10-section strips.
