Phoenix Contact MC 1.5 4-STF-3.5 Data Sheet
Summary
This high-quality plug component is a robust screw terminal block designed for reliable electrical connections in demanding industrial and automation environments. Rated for up to 8A at 160V, it ensures secure, long-lasting performance while maintaining strict RoHS/WEEE compliance. The accompanying technical documentation provides system integrators and engineers with comprehensive data, including precise connection specifications for various wire types, detailed safety certifications (UL, CSA), mounting dimensions, and selection guides necessary for seamless project implementation.

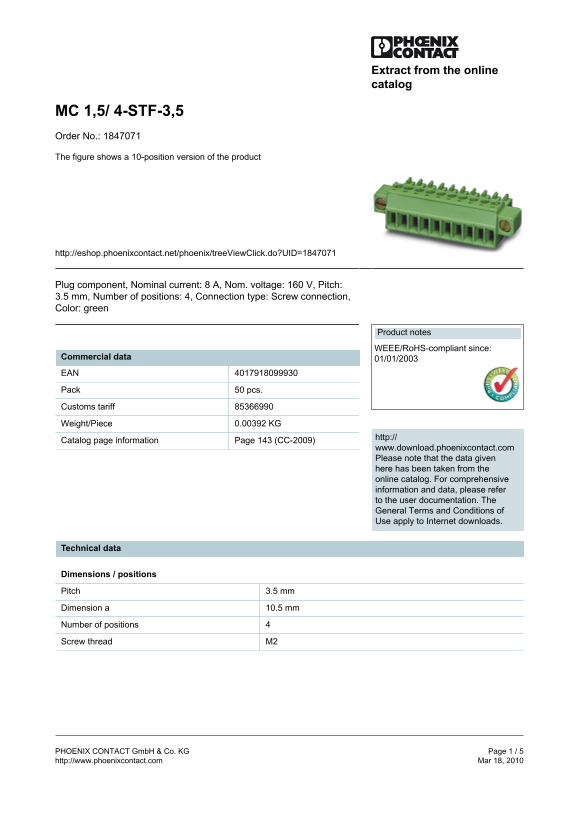

Page 1 Text Content
Extract from the online catalog
MC 1,5/ 4-STF-3,5 Order No.: 1847071 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1847071
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00392 KG
http://
Catalog page information Page 143 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 10.5 mm Number of positions Screw thread M2
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact MC 1.5 4-STF-3.5 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 133.75 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum nominal current rating for this block?
The device has a nominal current (I) of 8 A.
What are the acceptable conductor cross sections for stranded wire installation?
Solid conductors range from min. 0.14 mm² to max. 1.5 mm², and stranded wires cover similar ranges.
What is the recommended tightening torque range?
The tightening torque must be kept between a minimum of 0.22 Nm and a maximum of 0.25 Nm.
Is this component certified for various international standards?
Yes, it holds certifications including CB, CSA, CUL, GOST, UL, and VDE-PZI.
