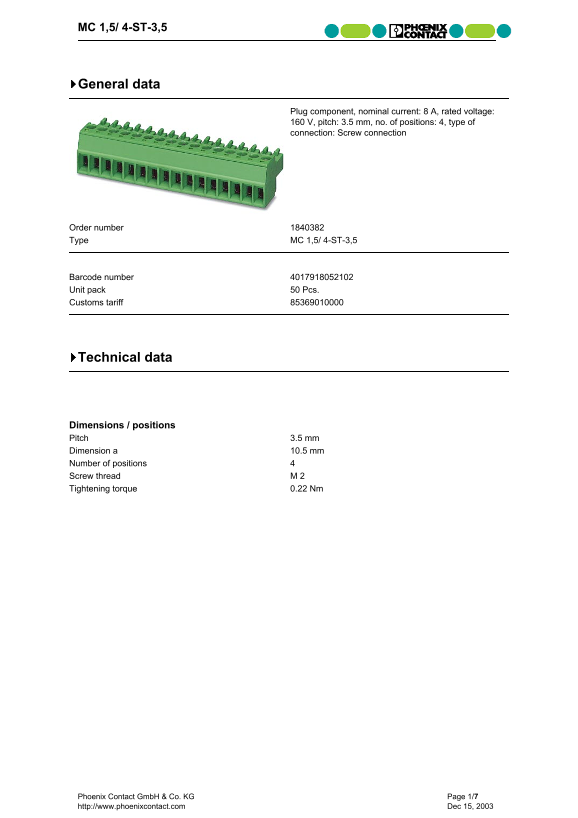

MC 1,5/ 4-ST-3,5
General data
Plug component, nominal current: 8 A, rated voltage: 160 V, pitch: 3.5 mm, no. of positions: 4, type of connection: Screw connection
Order number Type MC 1,5/ 4-ST-3,5
Barcode number Unit pack 50 Pcs. Customs tariff
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 10.5 mm Number of positions 4 Screw thread M 2 Tightening torque 0.22 Nm
Phoenix Contact Gmb H & Co. KG Page 1/7 http://www.phoenixcontact.com Dec 15, 2003
Page Summary Contents For Phoenix Contact MC 1.5 4-ST-3.5 Data Sheet / User Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 91.67 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and rated voltage of this plug component?
The product has a nominal current rating of 8 A and a rated voltage of 160 V.
What are the limits for connecting flexible conductors?
For rigid wires, the maximum cross section is 1.5 mm², while for flexible wires, it is also 1.5 mm² max.
What accessories are available for marking and assembly?
Marker cards (like 0804073 SK) can mark sections, and a specialized screwdriver (such as 1205037 SZS) matches all terminal blocks up to 1.5 mm².
