This plug component is a robust, modular electrical connector designed for industrial applications requiring reliable interconnectivity. With capacity up to 8A at 160V, it features a precise 3.81mm pitch and screw connection method for secure wiring. The accompanying manual provides comprehensive technical data, including detailed connection specifications for solid and stranded conductors, compliance certifications (UL/CSA), and guidelines for selecting compatible accessories. Essential for electrical engineers and automation technicians designing durable and standardized industrial control systems.

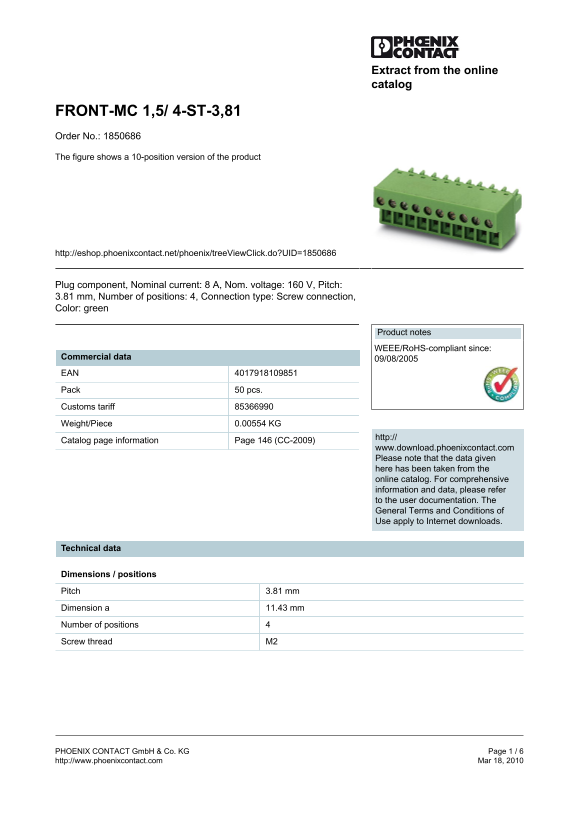

Page 1 Text Content
Extract from the online catalog
FRONT-MC 1,5/ 4-ST-3,81 Order No.: 1850686 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1850686
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00554 KG
http://
Catalog page information Page 146 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 11.43 mm Number of positions Screw thread M2
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FRONT-MC 1.5 4-ST-3.81 Data Sheet/Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 151.54 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum continuous load current?
It has a maximum load current of 8 A when utilizing a 1.5 mm² conductor cross section.
What are the specified wire size limits for solid conductors?
The acceptable range is from a minimum of 0.14 mm² up to a maximum of 1.5 mm².
What tightening torque should be used when making connections?
Users must maintain a tightening torque between a minimum of 0.22 Nm and a maximum of 0.25 Nm.
Does this plug component meet specific environmental standards?
Yes, the product is confirmed as WEEE/RoHS-compliant.
