Phoenix Contact MC 1.5 6-G-3.81 THT Data Manual/Specifications Sheet
Summary
A high-quality 6-position terminal header designed for reliable electrical termination in various assemblies (SMD/THT/THR). This component is suitable for applications requiring a nominal current of up to 8 A. The accompanying catalog provides comprehensive technical documentation, detailing assembly plans, precise dimensions, and compliance certifications (UL, VDE). It serves electronics engineers and industrial system designers who require efficient integration of reliable, scalable electrical connections into their products.
Page 1 Text Content
Extract from the online catalog

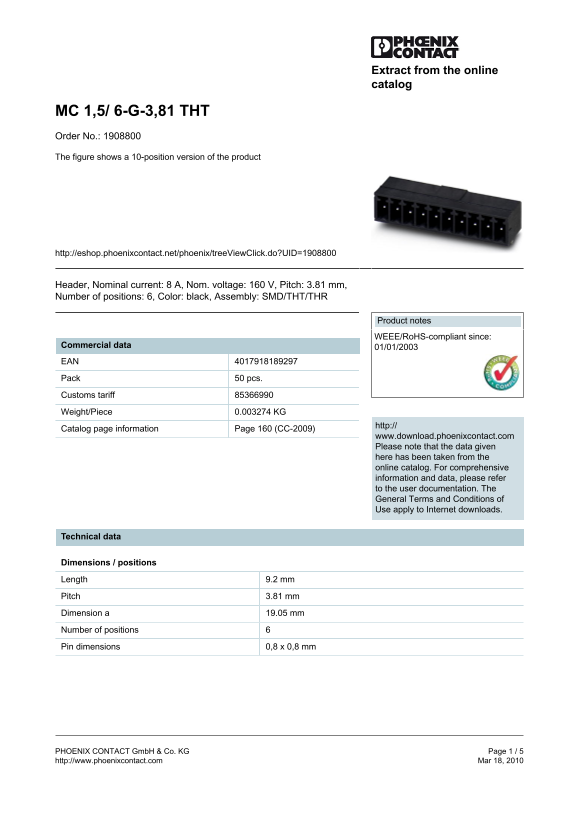

MC 1,5/ 6-G-3,81 THT Order No.: 1908800 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1908800
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 6, Color: black, Assembly: SMD/THT/THR
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003274 KG
http://
Catalog page information Page 160 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.2 mm Pitch 3.81 mm Dimension a 19.05 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
