Phoenix Contact MC 1.5 2-G-3.81 Data Sheet
Summary
This highly versatile modular terminal block connector is engineered for reliable electrical connections in industrial and commercial panel building. With a rated capacity up to 8A and compatible with multiple connection types, it ensures safe wiring of control circuits. The comprehensive technical documentation provides critical specifications, including dimensional layouts, voltage ratings, and compatibility details for various system accessories (plugs and associated components). It is essential reading for electrical engineers, instrumentation technicians, and panel designers building professional-grade industrial control systems.
Page 1 Text Content

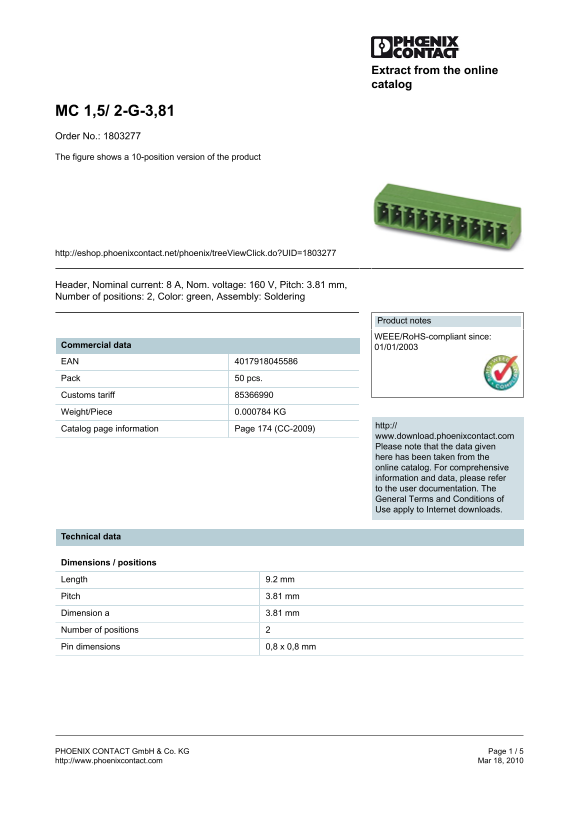

Extract from the online catalog
MC 1,5/ 2-G-3,81 Order No.: 1803277 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1803277
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 2, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000784 KG
http://
Catalog page information Page 174 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.2 mm Pitch 3.81 mm Dimension a 3.81 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
