Phoenix Contact MCV 1.5 4-GF-3.81 Data Sheet
Summary
This robust, 4-position terminal block is engineered for reliable electrical connectivity in industrial control systems (8A @ 160V). The accompanying documentation provides comprehensive technical data, including dimensional plans, detailed soldering guides, accessory suggestions, and extensive regulatory compliance certifications (UL, CSA, VDE). It is highly recommended for electrical engineers and automation specialists responsible for designing durable, high-performance circuit wiring solutions.
Page 1 Text Content
Extract from the online catalog

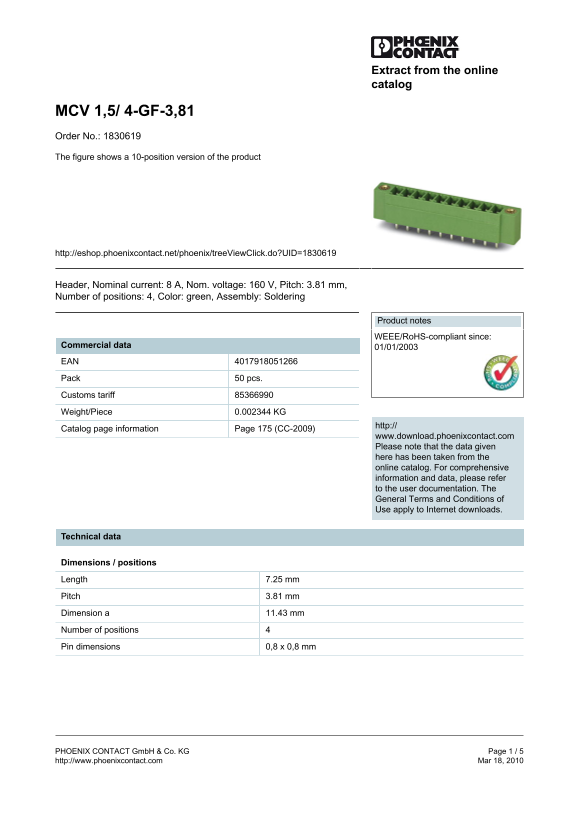

MCV 1,5/ 4-GF-3,81 Order No.: 1830619 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1830619
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 4, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.002344 KG
http://
Catalog page information Page 175 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 7.25 mm Pitch 3.81 mm Dimension a 11.43 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
