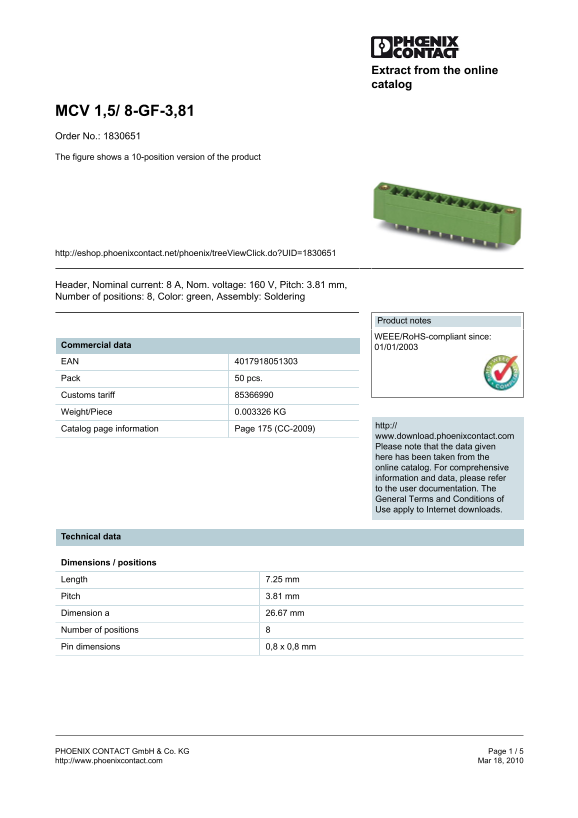

Page 1 Text Content
Extract from the online catalog
MCV 1,5/ 8-GF-3,81 Order No.: 1830651 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1830651
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 8, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003326 KG
http://
Catalog page information Page 175 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 7.25 mm Pitch 3.81 mm Dimension a 26.67 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
