Phoenix Contact MCD 1,5 2- G1-3,81 Data Sheet
Summary
This high-quality terminal block header is designed for reliable electrical connections in industrial control systems, featuring an 8 A nominal current and a 3.81 mm pitch. The comprehensive technical guide provides all necessary information for professional designers and electricians, including detailed dimensional drawings, full voltage ratings, secure safety certifications (UL, CSA), and necessary soldering plans. Ensure optimal circuit performance with durable components built for demanding environments.
Page 1 Text Content
Extract from the online catalog

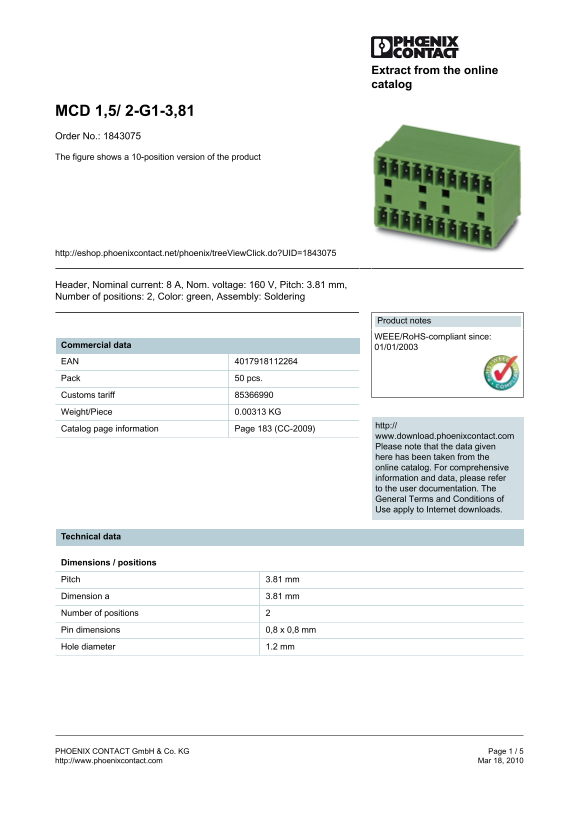

MCD 1,5/ 2-G1-3,81 Order No.: 1843075 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1843075
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 2, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00313 KG
http://
Catalog page information Page 183 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.81 mm Dimension a 3.81 mm Number of positions Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
