Phoenix Contact FMC 1,5 2-ST-3,5 Data Sheet / Manual
Summary
This essential plug component terminal block is designed for reliable and durable electrical connections, handling up to 8 A at a nominal voltage of 160 V. Ideal for electricians and engineers building industrial control panels or customized circuit systems. The accompanying manual provides comprehensive technical data, including detailed connection specifications, accessory recommendations (like marker cards), and dimensional drawings, ensuring proper installation and long-term operational integrity.

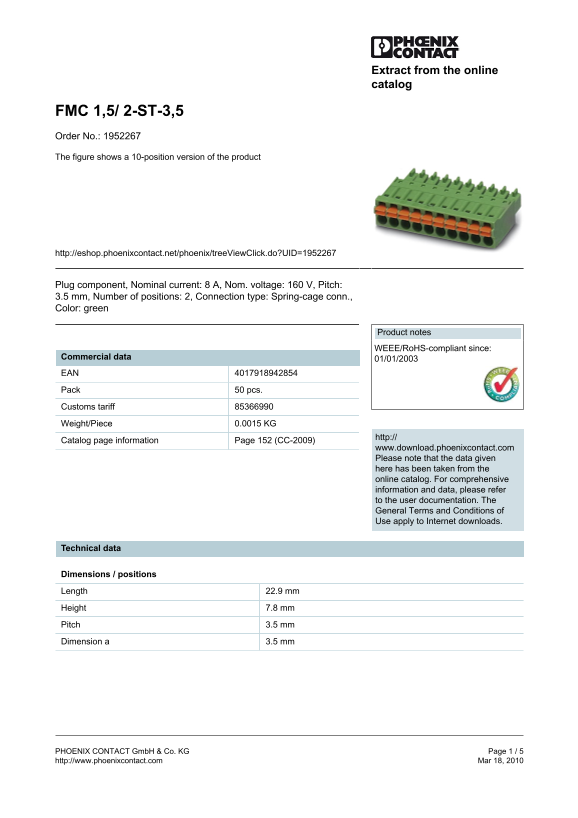

Page 1 Text Content
Extract from the online catalog
FMC 1,5/ 2-ST-3,5 Order No.: 1952267 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1952267
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 2, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0015 KG
http://
Catalog page information Page 152 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 7.8 mm Pitch 3.5 mm Dimension a 3.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FMC 1,5 2-ST-3,5 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 116.04 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and current for this component?
The components have a Nominal voltage (U) of 160 V and a Nominal current (I) of 8 A.
What are the required conductor cross-section limits?
For stranded conductors, they must be between 0.2 mm² and 1.5 mm². For solid conductors, ranges are also 0.2 mm² to 1.5 mm².
Is this product WEEE/RoHS compliant?
Yes, the component has been WEEE/RoHS-compliant since January 1, 2003.
What is the pitch and number of positions?
The Pitch is 3.5 mm, and the specified item can handle 2 positions (though a 10-position version is shown in general).
