This 10-position plug component is a reliable terminal block designed for electrical connections up to 8A. The accompanying manual provides detailed technical documentation, covering precise dimensions, broad connection requirements for various conductor types, and essential regulatory compliance data (UL/CUL). It is the indispensable resource for engineers, technicians, and industrial buyers who require accurate installation guidelines and specified accessories when designing or maintaining automation and control panel systems.

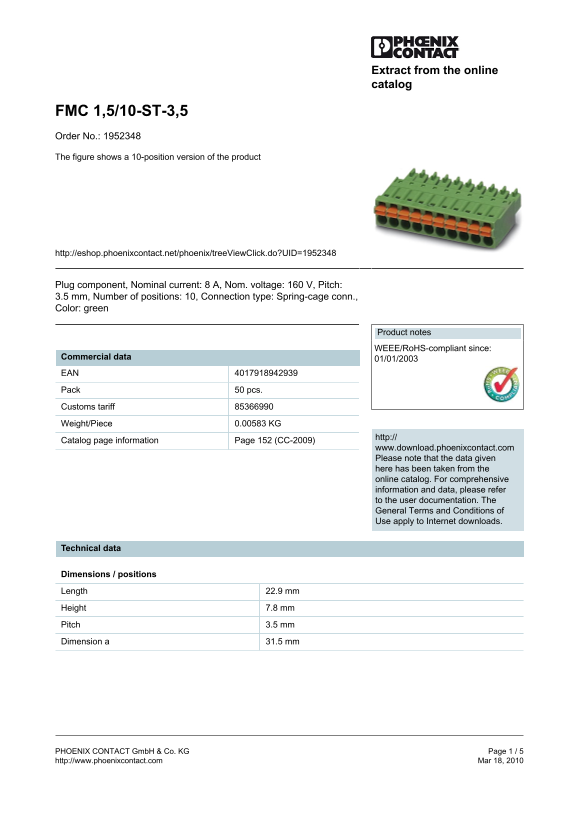

Page 1 Text Content
Extract from the online catalog
FMC 1,5/10-ST-3,5 Order No.: 1952348 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1952348
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00583 KG
http://
Catalog page information Page 152 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 7.8 mm Pitch 3.5 mm Dimension a 31.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - FMC 1,5 10-ST-3,5 Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 115.88 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum load current I can handle?
The maximum load current rating for this device is 8 A.
What types of wire cross-sections are compatible with the block?
It accepts solid or stranded conductors ranging from a minimum of 0.2 mm² up to a maximum of 1.5 mm². AWG/kcmil sizes 24–16 are also supported.
Does this connector meet environmental standards?
Yes, the product is WEEE/RoHS-compliant.
