Phoenix Contact FMC 1,5 6-ST-3,5 Order No. 1952306 Product Data Handbook & Manual
Summary
This plug component is a reliable terminal block designed for connecting electrical circuits with precise specifications (e.g., 8A, 160V). It provides flexible connectivity in compact industrial or panel applications. This documentation serves as a comprehensive technical resource for engineers and technicians, detailing installation requirements, cross-section compatibility, compatible labeling accessories, and adherence to global certifications like UL/CUL. Use this manual to ensure optimal selection and reliable integration into your electrical control systems.

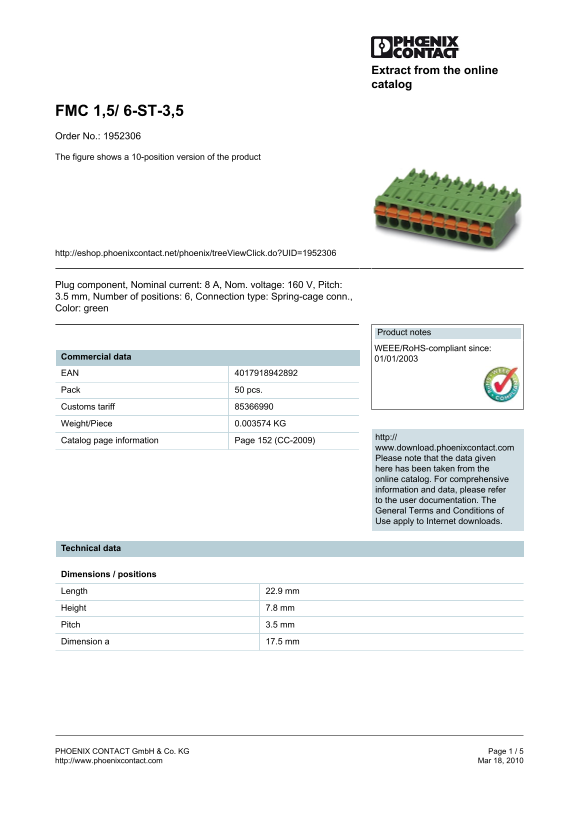

Page 1 Text Content
Extract from the online catalog
FMC 1,5/ 6-ST-3,5 Order No.: 1952306 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1952306
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 6, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.003574 KG
http://
Catalog page information Page 152 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 22.9 mm Height 7.8 mm Pitch 3.5 mm Dimension a 17.5 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FMC 1,5 6-ST-3,5 Order No. 1952306 Product Data Handbook & Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 115.92 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage of this component?
The nominal voltage is U 160 V.
What types and sizes of conductors can be connected?
It supports solid or stranded conductors ranging from a minimum of 0.2 mm² to a maximum of 1.5 mm².
Do you support specific wire gauges according to AWG/kcmil standards?
Yes, the compatible range is from a minimum of 24 to a maximum of 16 AWG/kcmil.
How can I label the individual terminal positions?
You can use marker pens for manual labeling or specialized self-adhesive printed marker cards.
