Phoenix Contact MSTBT 2,5 6-ST-5,08 Order No. 1781027 Product Data Manual
Summary
Streamline your electrical connections with this comprehensive guide to modular terminal blocks. This manual provides detailed specifications for connecting components, including plug-in, base strip, and header variants optimized for control cabinet automation. It covers essential technical data such as current ratings up to 12A, diverse connection materials (solid/stranded), mounting options (DIN rail), and compliance with major international standards (UL, CSA, VDE). Ideal for electrical engineers, industrial technicians, and system integrators building robust, reliable electrical infrastructure.
Page 1 Text Content
Extract from the online catalog

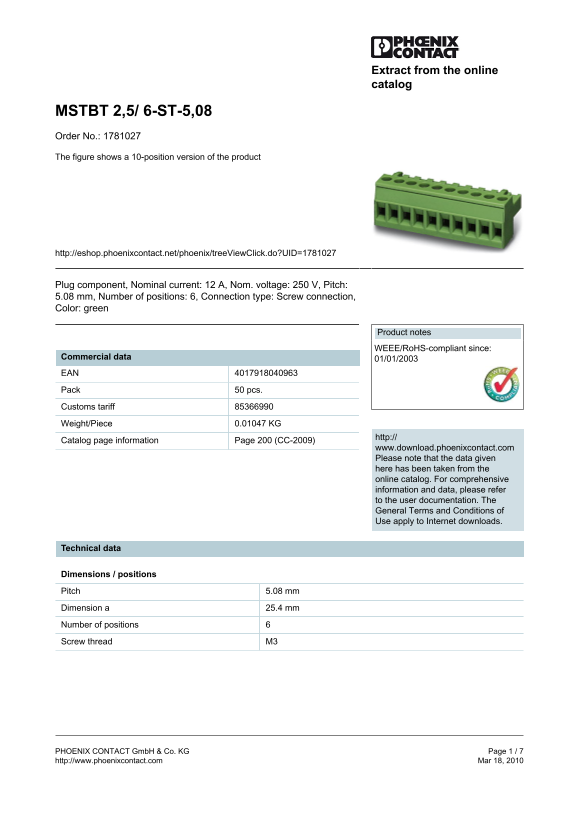

MSTBT 2,5/ 6-ST-5,08 Order No.: 1781027 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1781027
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 6, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01047 KG
http://
Catalog page information Page 200 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 25.4 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 7 http://www.phoenixcontact.com Mar 18, 2010
