Phoenix Contact MSTBT 2,5 2-STAR Order No. 1779835: Data Manual/Instructions
Summary
Discover this high-performance plug component designed for reliable electrical connectivity in industrial applications. Rated for 12A at 250V with a standardized 5mm pitch, it ensures secure connections via screw terminals. The comprehensive technical catalog provides detailed specifications, including precise wiring guidelines (for stranded and solid conductors), crucial safety data (UL, VDE, CSA compliant ratings), and an extensive list of compatible accessories for complete system integration. This solution is essential for electrical engineers and technicians designing robust panel boards and control cabinets.
Page 1 Text Content

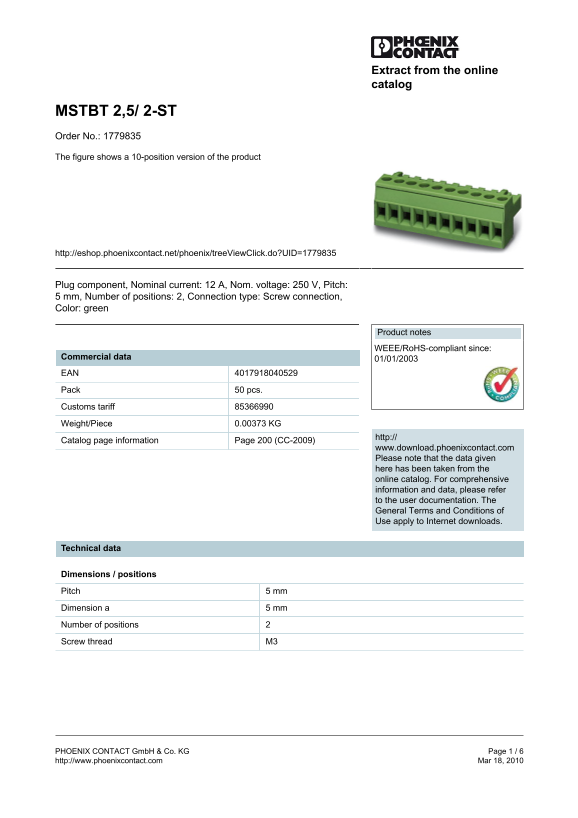

Extract from the online catalog
MSTBT 2,5/ 2-ST Order No.: 1779835 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1779835
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00373 KG
http://
Catalog page information Page 200 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5 mm Dimension a 5 mm Number of positions Screw thread M3
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
