Phoenix Contact ICV 2,5 8-G-5,08 Data Manual - Order No. 1786006
Summary
A professional modular electrical connection component designed for industrial automation applications. This 8-position header strip handles up to 12 A at 320 V, featuring a standard 5.08 mm pitch for reliable wiring. The accompanying manual provides comprehensive technical documentation, detailing dimensions, various assembly methods (soldering, press-in), and international compliance certifications including UL and CSA. It is essential reading for electrical engineers and technicians selecting components for highly reliable circuit design.
Page 1 Text Content
Extract from the online catalog

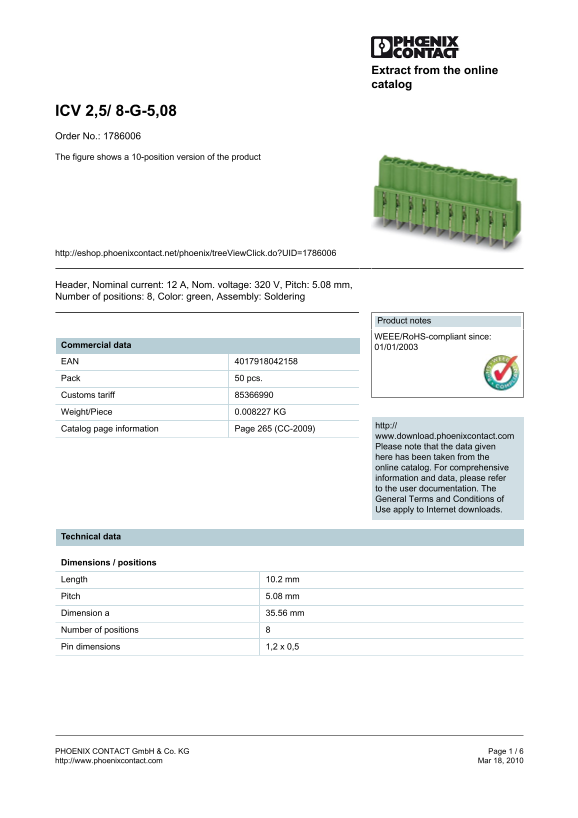

ICV 2,5/ 8-G-5,08 Order No.: 1786006 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1786006
Header, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 8, Color: green, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.008227 KG
http://
Catalog page information Page 265 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10.2 mm Pitch 5.08 mm Dimension a 35.56 mm Number of positions Pin dimensions 1,2 x 0,5
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
