Phoenix Contact FRONT-MSTB 2,5 4-STF-5,08 Order No. 1777824 Data Handbook
Summary
This modular plug component provides reliable connection points for industrial electrical circuits up to 12A at 250V. The comprehensive guide details technical specifications, including dimensional data, various wiring cross-section compatibility requirements, and mandatory voltage ratings. Featuring compliance with global standards like UL and VDE, this documentation is vital for system integrators, engineers, and technicians designing complex, high-reliability industrial control panels and automation systems.
Page 1 Text Content
Extract from the online catalog

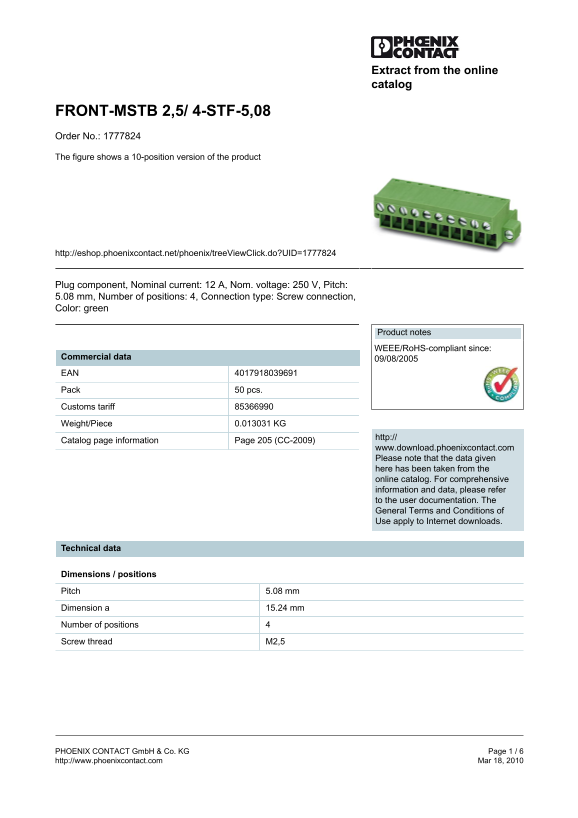

FRONT-MSTB 2,5/ 4-STF-5,08 Order No.: 1777824 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1777824
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 4, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.013031 KG
http://
Catalog page information Page 205 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 15.24 mm Number of positions Screw thread M2,5
