Phoenix Contact SMKDS 2,5 2-5,08 Order No. 1705469 Data Sheet
Summary
This versatile PC terminal block is designed for robust industrial wiring, rated up to 20A/250V with a standard 5.08mm pitch. Featuring secure screw and solder connections, it adapts easily to various panel configurations. The manual provides essential technical documentation, including detailed electrical specifications (surge voltage, cross-section limits), certification compliance (UL, CSA), dimensioned drawings, and accessory guides. It is the ideal component for system integrators, engineers, and technicians building reliable, high-performance electrical control panels.

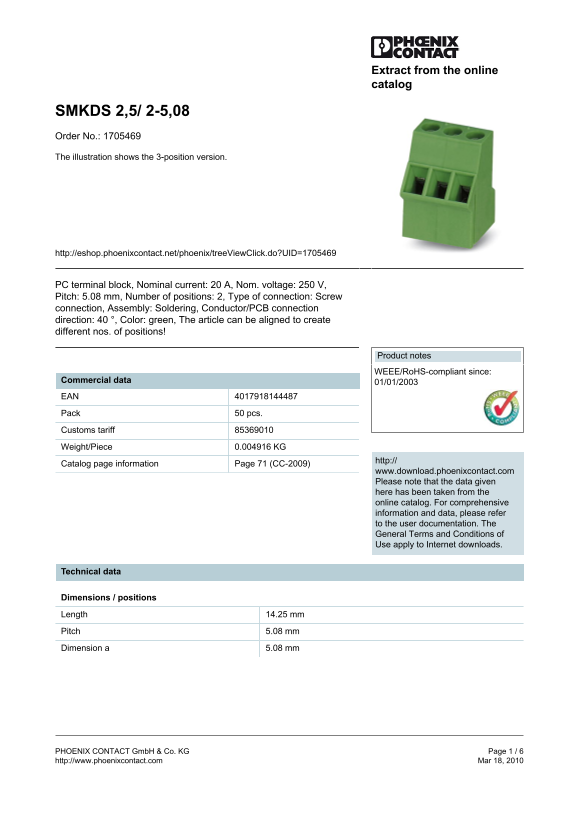

Page 1 Text Content
Extract from the online catalog
SMKDS 2,5/ 2-5,08 Order No.: 1705469 The illustration shows the 3-position version.
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1705469
PC terminal block, Nominal current: 20 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 2, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 40 °, Color: green, The article can be aligned to create different nos. of positions!
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004916 KG
http://
Catalog page information Page 71 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 14.25 mm Pitch 5.08 mm Dimension a 5.08 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact SMKDS 2,5 2-5,08 Order No. 1705469 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 137.16 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and voltage rating of this terminal block?
The product has a Nominal current (I) of 20 A and a Nominal voltage (U) of 250 V.
What conductor sizes are supported for stranded wires?
It supports stranded conductors ranging from a minimum of 0.14 mm² to a maximum of 2.5 mm².
Is the terminal block compliant with major standards?
Yes, it is certified by CB, CCA, CSA, CUL, GOST, and SEV.
What type of connection methods are available for conductors?
It accepts connections via soldering (Assembly: Soldering) or standard screw terminals ("Screw connection").
What specialized accessories complement this terminal block?
Available accessories include insertion bridges, marker pens, descriptive marker cards, and specialized screwdrivers.
