Phoenix Contact MFKDSP 5-5,08 Order No. 1906776 Data Sheet
Summary
This high-performance PC terminal block is designed for robust electrical connectivity, featuring a 5.08 mm pitch, 5 positions, and 12 A capacity. It utilizes reliable spring-cage connections and soldering assembly methods. This manual provides comprehensive technical specifications, vital accessory listings, compliance documentation (UL, CSA), and detailed dimensional drawings necessary for system integration. Ideal for electrical engineers and industrial maintenance professionals building dependable control and automation systems.

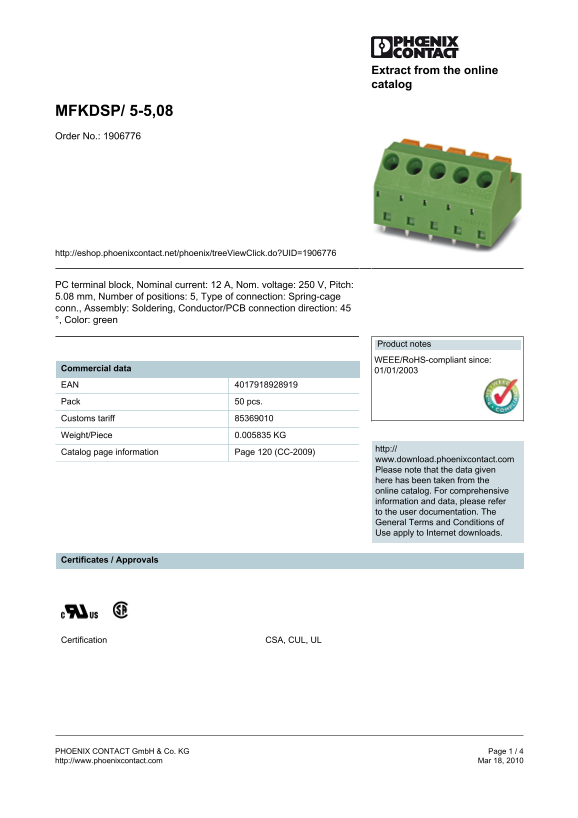

Page 1 Text Content
Extract from the online catalog
MFKDSP/ 5-5,08 Order No.: 1906776
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1906776
PC terminal block, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 5, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.005835 KG
http://
Catalog page information Page 120 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Certificates / Approvals
Certification CSA, CUL, UL
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact MFKDSP 5-5,08 Order No. 1906776 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 117.56 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the electrical standards and ratings for this terminal block?
It is rated with a nominal voltage of 250 V, supports up to 12 A, and holds CSA, CUL, and UL certifications (U 300 V N).
How do I connect the conductors to the block?
The system supports two connection methods: spring-cage connectivity or soldering assembly. Conductors can connect at a 45° angle.
What kind of labeling accessories are available?
A variety of marker cards are available, including printed strips (labeled 0-9 or 1-10), custom-labeled options, and unprinted strips.
Where should I look for the most detailed technical information?
The manual specifies that users must refer to the comprehensive user documentation provided by Phoenix Contact for full data.
