Phoenix Contact PLH 16 5-10-ZF Data Sheet/Manual Order No. 1770490
Summary
The PLH 16/ 5-10-ZF is a robust, high-voltage terminal block designed for secure electrical connections within industrial control cabinets. This manual serves as a comprehensive guide, detailing all technical specifications, wiring diagrams, and precise dimensions required for successful installation. It is essential reading for electrical engineers, technicians, and automation specialists who require reliable, solderable components when building or maintaining professional power distribution systems up to 1000V.

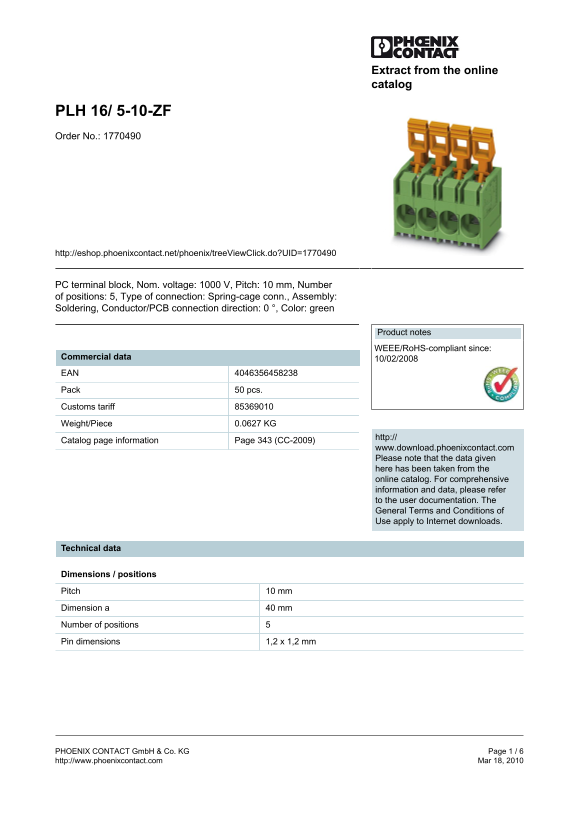

Page 1 Text Content
Extract from the online catalog
PLH 16/ 5-10-ZF Order No.: 1770490
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770490
PC terminal block, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 5, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0627 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 40 mm Number of positions Pin dimensions 1,2 x 1,2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PLH 16 5-10-ZF Data Sheet/Manual Order No. 1770490
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 180.62 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum rated voltage for this terminal block?
The nominal and rated voltage (III/2) are both 1000 V.
What conductor sizes can be accommodated by the PLH 16/ 5-10-ZF?
Solid conductors range from min. 0.75 mm² to max. 16 mm².
Is this terminal block compliant with current regulations?
Yes, it is WEEE/RoHS-compliant since 10/02/2008.
What are the specifications for stranded conductors using ferrules?
Stranded conductors require a minimum area of 0.75 mm² and can handle up to 16 mm² without plastic sleeves.
