Phoenix Contact - PLH 16 8-10 Data Handbook
Summary
This comprehensive manual details a high-quality PC terminal block solution designed for robust electrical connections in industrial and automation applications. Featuring an 8-position layout and spring-cage connection method, this green terminal block is highly suitable for PCB soldering assembly and handles conductors up to 400V nominal voltage. The accompanying documentation provides critical technical data, precise dimensions, wiring guidelines (for various solid and stranded conductors), and compliance certification, making it an essential resource for electrical engineers and system integrators designing reliable circuit boards.

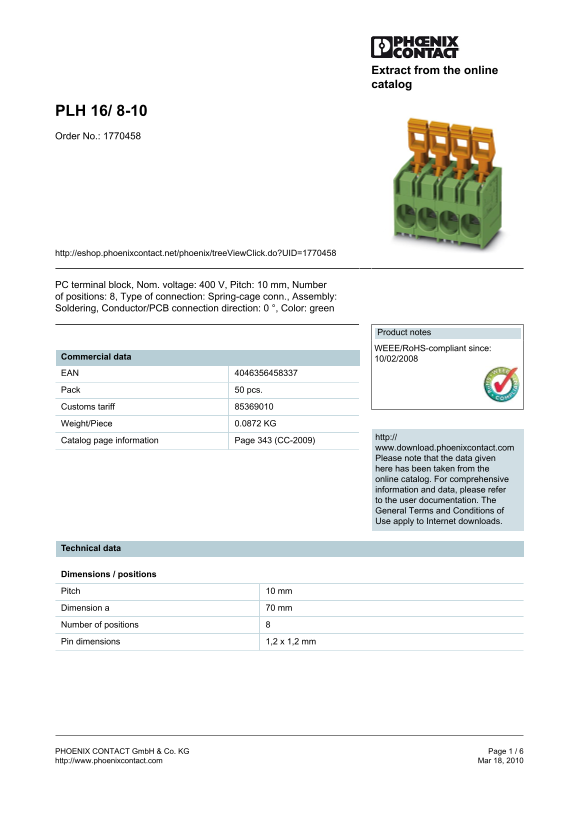

Page 1 Text Content
Extract from the online catalog
PLH 16/ 8-10 Order No.: 1770458
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770458
PC terminal block, Nom. voltage: 400 V, Pitch: 10 mm, Number of positions: 8, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0872 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 70 mm Number of positions Pin dimensions 1,2 x 1,2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PLH 16 8-10 Data Handbook
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 180.86 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the suitable wire cross section range for solid conductors?
Solid conductors must have a minimum of 0.75 mm² up to 16 mm².
How can this terminal block be installed or assembled?
The designated assembly method specified for this component is Soldering.
What are the voltage characteristics and compliance statuses?
It features a nominal voltage (U) of 400V, Rated surge voltages of 4 kV (for both III/2 and III/3), and is WEEE/RoHS compliant since 10/02/2008.
