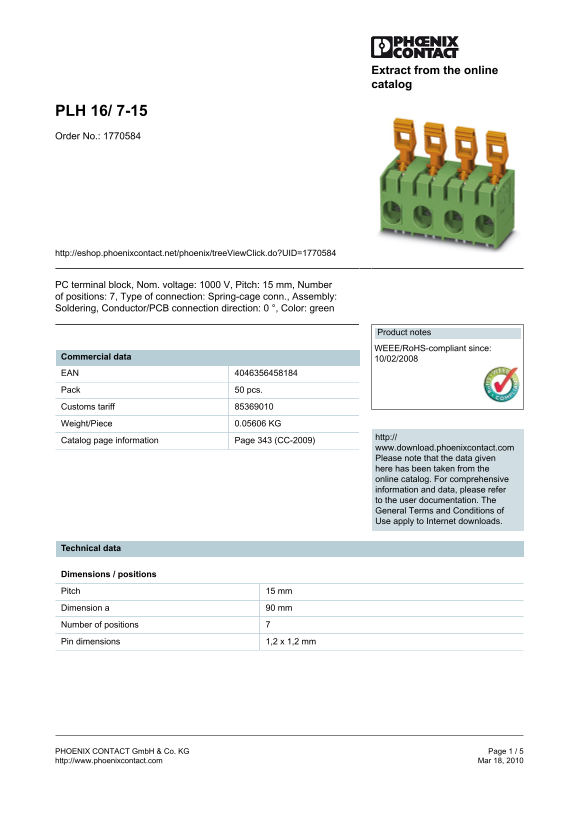

Page 1 Text Content
Extract from the online catalog
PLH 16/ 7-15 Order No.: 1770584
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770584
PC terminal block, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 7, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.05606 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 15 mm Dimension a 90 mm Number of positions Pin dimensions 1,2 x 1,2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PLH 16 7-15 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 164.26 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage and pitch of this terminal block?
The nominal voltage is 1000 V, and the pitch is 15 mm.
How many positions does the PLH 16/ 7-15 support?
It supports 7 positions (Number of positions: 7).
What conductor cross sections are supported for solid wire connections?
Solid wires must be between a minimum of 0.75 mm² and a maximum of 16 mm².
Is this terminal block compliant with environmental standards?
Yes, it is WEEE/RoHS-compliant (since: Commercial data 10/02/2008).
What is the recommended hole diameter for mounting?
The specified hole diameter is 1.6 mm.
