Phoenix Contact PLH 16 2-15 Data Sheet Order No. 1770539
Summary
This terminal block (PLH 16/ 2-15) is designed for reliable electrical connectivity, handling up to 76 A at 1000 V across two positions with a 15 mm pitch. The associated guide provides critical technical data and dimensions, including detailed instructions on connection methods. It covers conductor cross-section compatibility (for both stranded and solid wires, including ferrule requirements), assembly diagrams, and electrical specifications (e.g., rated surge voltage). This essential documentation is for engineers and technicians needing precise standards for robust industrial wiring solutions.

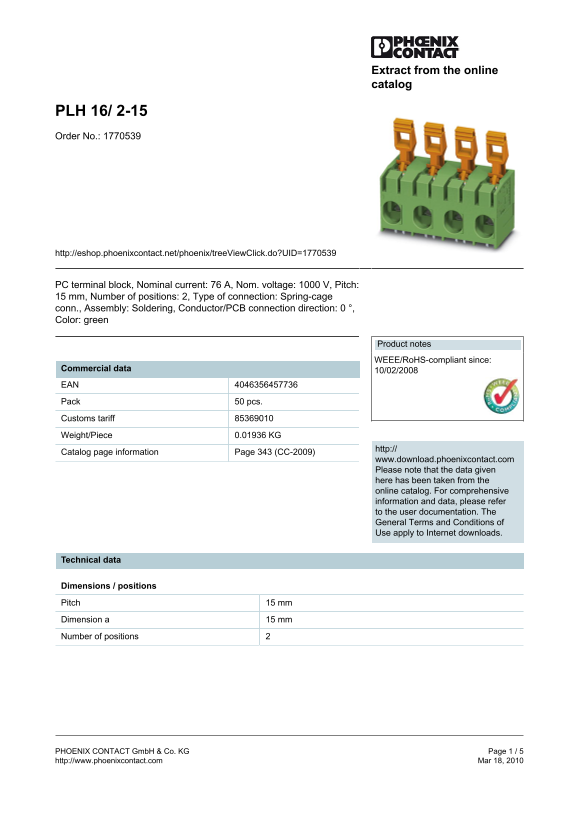

Page 1 Text Content
Extract from the online catalog
PLH 16/ 2-15 Order No.: 1770539
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770539
PC terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 2, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.01936 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 15 mm Dimension a 15 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PLH 16 2-15 Data Sheet Order No. 1770539
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 164.55 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the main electrical ratings for this terminal block?
It has a nominal current of 76 A and supports a nominal voltage of 1000 V.
What conductor cross sections are compatible with this unit?
Solid conductors range from min. 0.75 mm² to max. 16 mm². Stranded options also have specific minimums.
Is the product environmentally compliant and certified?
Yes, it is noted as WEEE/RoHS-compliant since 2008.
