Phoenix Contact - PLH 16 2-10-ZF Data Manual
Summary
This high-reliability terminal block is designed for secure, professional electrical connections in industrial automation and control systems. The comprehensive documentation serves as a technical guide containing detailed functional diagrams, dimensional drawings, application data, and full electrical specifications. It provides everything required—from connection suitability (up to 1000V/76A) to material compliance—making it an essential resource for engineers and technicians integrating reliable power distribution components into mission-critical designs.
Page 1 Text Content
Extract from the online catalog

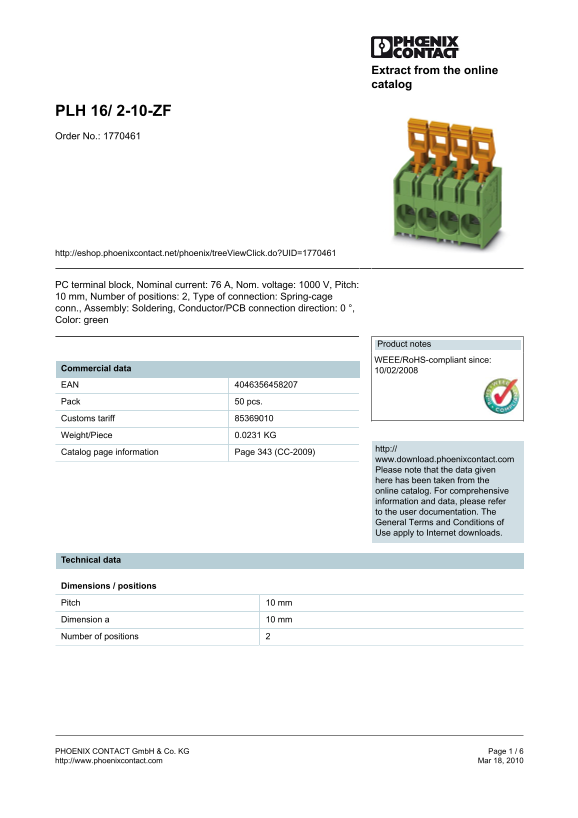

PLH 16/ 2-10-ZF Order No.: 1770461
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770461
PC terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 2, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.0231 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 10 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
