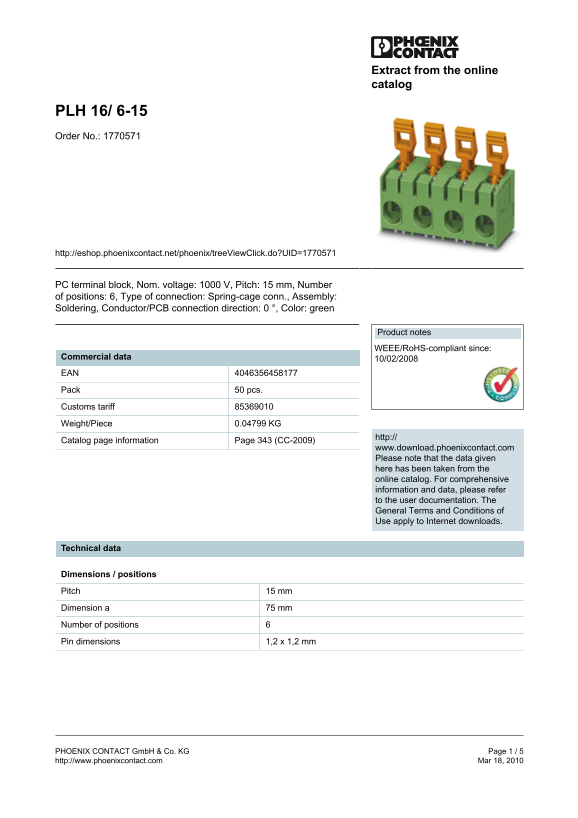

Extract from the online catalog
PLH 16/ 6-15 Order No.: 1770571
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770571
PC terminal block, Nom. voltage: 1000 V, Pitch: 15 mm, Number of positions: 6, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.04799 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 15 mm Dimension a 75 mm Number of positions Pin dimensions 1,2 x 1,2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
