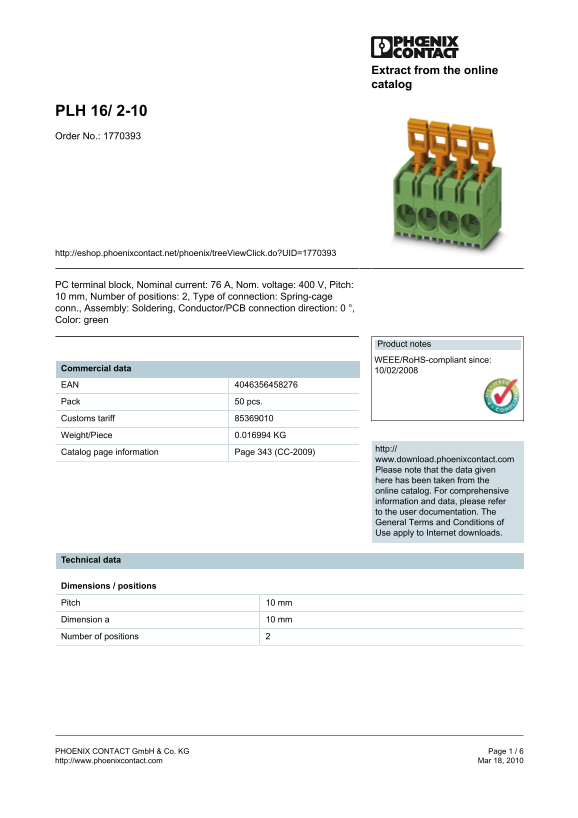

Phoenix Contact PLH 16 2-10 Data Sheet Order No. 1770393
Summary
The PLH block is a robust PC terminal solution designed for reliable high-current electrical connections up to 76A at 400V. This documentation provides essential technical data and detailed diagrams—including drilling plans and functional drawings—guiding accurate installation and integration. It is the definitive resource for electrical engineers, circuit designers, and industrial automation specialists building reliable control panels and power distribution systems.
Page 1 Text Content
Extract from the online catalog
PLH 16/ 2-10 Order No.: 1770393
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770393
PC terminal block, Nominal current: 76 A, Nom. voltage: 400 V, Pitch: 10 mm, Number of positions: 2, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.016994 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 10 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
